Android USB Host + Arduino: How to communicate without rooting your Android Tablet or Phone

February 9, 2012 Manuel Di Cerbo 267 Comments

Intro

In the past two posts we have explained the basics of USB communication with the Arduino Uno (also applicable for Arduino Mega).

In this post we’ll put everything together and show you how to communicate between your Android application and the Arduino using nothing but the Android USB host API. Remember, this approach has nothing to do with Android ADK! Unlike Android ADK, your Android device will act as the USB host, while your Arduino board will act as the USB device.

For the following application to work, you will require an Android device that supports USB host mode as well as the USB host API. Most Android 3.1+ tablets will suffice (some may require an USB OTG adapter). Also, the Galaxy Nexus has host mode enabled and matches the requirements (you will need an USB OTG adapter however).

This example consists of two parts:

The Android application that makes use of the USB API

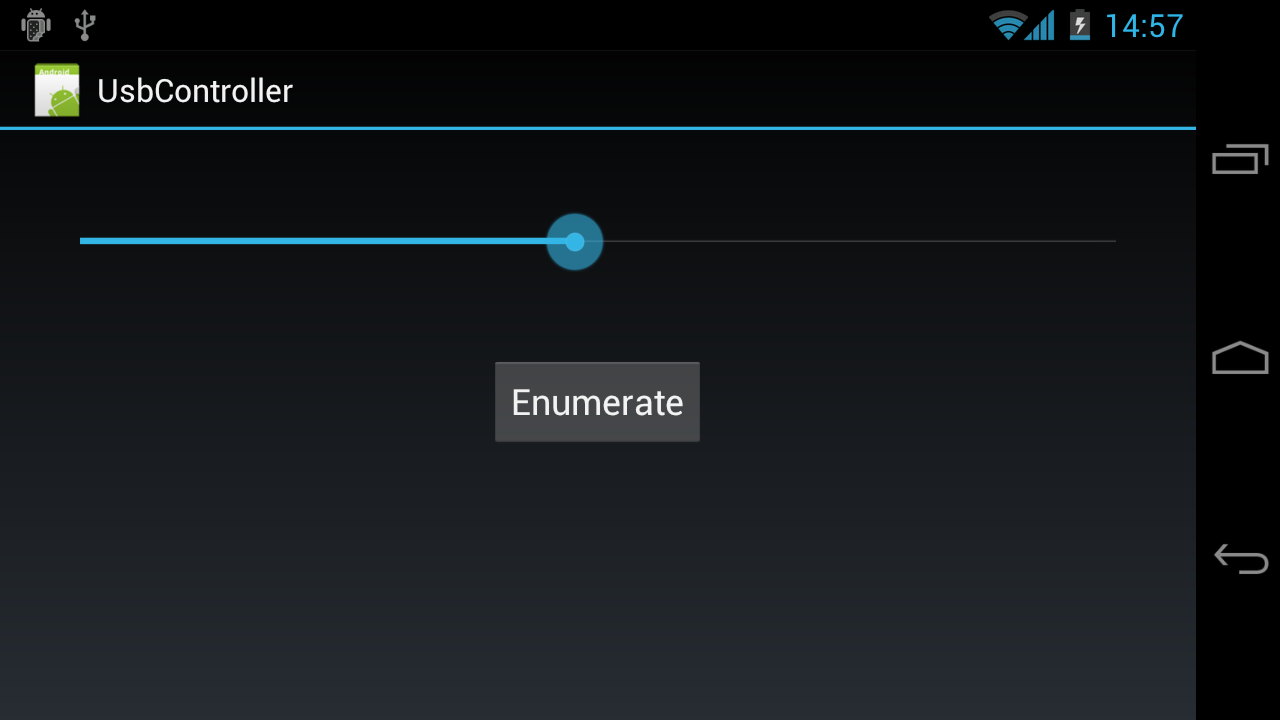

A simple Android app that let’s you regulate the brightness of an LED on the Arduino using a slider. It also features a button to “enumerate” the USB device.
Firmware for the Arduino that does some serial I/O with the Android app
Very basic firmware for the Arduino. An interrupt is generated when a new byte is received. The received data controls the brightness of the Arduino’s on-board LED.
(implemented via usleep-style software pwm in the main loop).

The Arduino firmware

In the main loop the firmware asserts and clears the LED pin of the Arduino (PB5). Here is a shortened excerpt:

int main(void) {
    //initialization
    initIO();
    uart_init();
    sei();

    uint8_t i = 0;
    volatile uint8_t pause;

    for(;;){//this is the main loop
        pause = data;
        PORTB |= (1 << LED);
        for(i = 0; i < pause; i++)
            _delay_us(10);
        PORTB &= ~(1 << LED);
        for(i = 0; i < 255-pause; i++)
            _delay_us(10);
    }
}

During a period of 2550[us], the LED is asserted for a duration of pause*10 [us] and cleared for (255-pause)*10[us]. Simply put, this is a very simple software PWM.

During that time, “data” and consequently “pause” may be changed within an interrupt routine form the serial USART port. This happens when the Android side sends data to the Arduino. The interrupt routine is extremely basic:

ISR(USART_RX_vect) {//attention to the name and argument here, won't work otherwise
    data = UDR0;//UDR0 needs to be read
}

The RX data has to be read in the ISR (interrupt service routine) from UDR0; have a look at the Atmega328P reference manual for further details. Since we are doing no multi-buffering shenanigans the handling is extremely simple (no need to call cli() or anything).

The rest of the code is initialization of the I/O pins and UART functionality. Download the complete example here: led_pwm.c

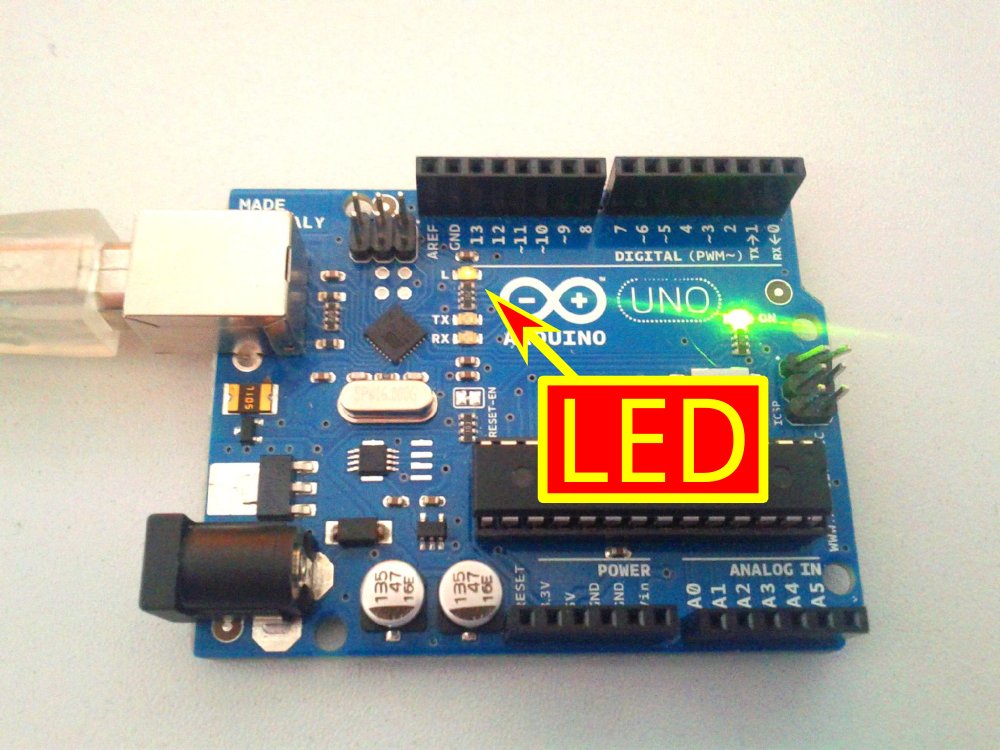

Controlled LED on the UNO by the firmware

The Android app

The Android application uses the basic knowledge of the preceding blog post Arduino USB transfers. During USB initialization, the Arduino USB serial converter is set up and after that, communication is done using the bulk IN endpoint of the very same serial converter.

With both the aforementioned firmware installed your Arduino board and the Android application installed on your phone or tablet, you will be able to control the brightness of the Arduino Uno’s built-in LED with a slider on your Android device. Again, please note that this will only work with devices that actually support both USB host mode (hardware, kernel requirement) as well as the Android USB host API (Android OS requirement).

The source code is available here: UsbController.tar.gz*
* You may need to change the PID value in UsbControllerActivity.java on line 38, if you have an Arduino Uno Rev3 or higher. You can check the VID/PID value with ‘lsusb’ after connecting the Arduino to your computer.

Many parts of the code are probably familiar to Android SW engineers. The most interesting section is in the class UsbController where the Arduino device is set up and communication is initiated. So let’s have a closer look at the inner class UsbRunnable within UsbController:

private class UsbRunnable implements Runnable {
    private final UsbDevice mDevice;

    UsbRunnable(UsbDevice dev) {
        mDevice = dev;
    }

    @Override
    public void run() {//here the main USB functionality is implemented
        UsbDeviceConnection conn = mUsbManager.openDevice(mDevice);
        if (!conn.claimInterface(mDevice.getInterface(1), true)) {
            return;
        }
        // Arduino USB serial converter setup
        conn.controlTransfer(0x21, 34, 0, 0, null, 0, 0);
        conn.controlTransfer(0x21, 32, 0, 0, new byte[] { (byte) 0x80,
                0x25, 0x00, 0x00, 0x00, 0x00, 0x08 }, 7, 0);

        UsbEndpoint epIN = null;
        UsbEndpoint epOUT = null;

        UsbInterface usbIf = mDevice.getInterface(1);
        for (int i = 0; i < usbIf.getEndpointCount(); i++) {
            if (usbIf.getEndpoint(i).getType() == UsbConstants.USB_ENDPOINT_XFER_BULK) {
                if (usbIf.getEndpoint(i).getDirection() == UsbConstants.USB_DIR_IN)
                    epIN = usbIf.getEndpoint(i);
                else
                    epOUT = usbIf.getEndpoint(i);
            }
        }

        for (;;) {// this is the main loop for transferring
            synchronized (sSendLock) {//ok there should be a OUT queue, no guarantee that the byte is sent actually
                try {
                    sSendLock.wait();
                } catch (InterruptedException e) {
                    if (mStop) {
                        mConnectionHandler.onUsbStopped();
                        return;
                    }
                    e.printStackTrace();
                }
            }
            conn.bulkTransfer(epOUT, new byte[] { mData }, 1, 0);

            if (mStop) {
                mConnectionHandler.onUsbStopped();
                return;
            }
        }
    }
}

After the USB interface has been claimed the Arduino USB serial converter is initialized by issuing the following control transfers:

conn.controlTransfer(0x21, 34, 0, 0, null, 0, 0);
conn.controlTransfer(0x21, 32, 0, 0, new byte[] { (byte) 0x80,
                0x25, 0x00, 0x00, 0x00, 0x00, 0x08 }, 7, 0);

The first call sets the control line state, the second call sets the line encoding (9600, 8N1).
For communication, an additional thread is used to send data without blocking the Activity’s main UI thread. By notifying sSendLock of the UsbController the data will be transferred. After submission, the thread will go into “wait” again. This way, even if submission takes more time than expected, the Activity’s main thread will not be blocked and hence the app will not become unresponsive.

Also note that in the Android Manifest none of the XML-style device filters are needed, since enumeration happens by the user in the app when pressing the “enumerate” button. Device filters – and therefore automatic activity launch when connecting the Arduino – are not used in this example in order to make the code simpler to comprehend. However, this could be easily implemented with a few lines of additional code.

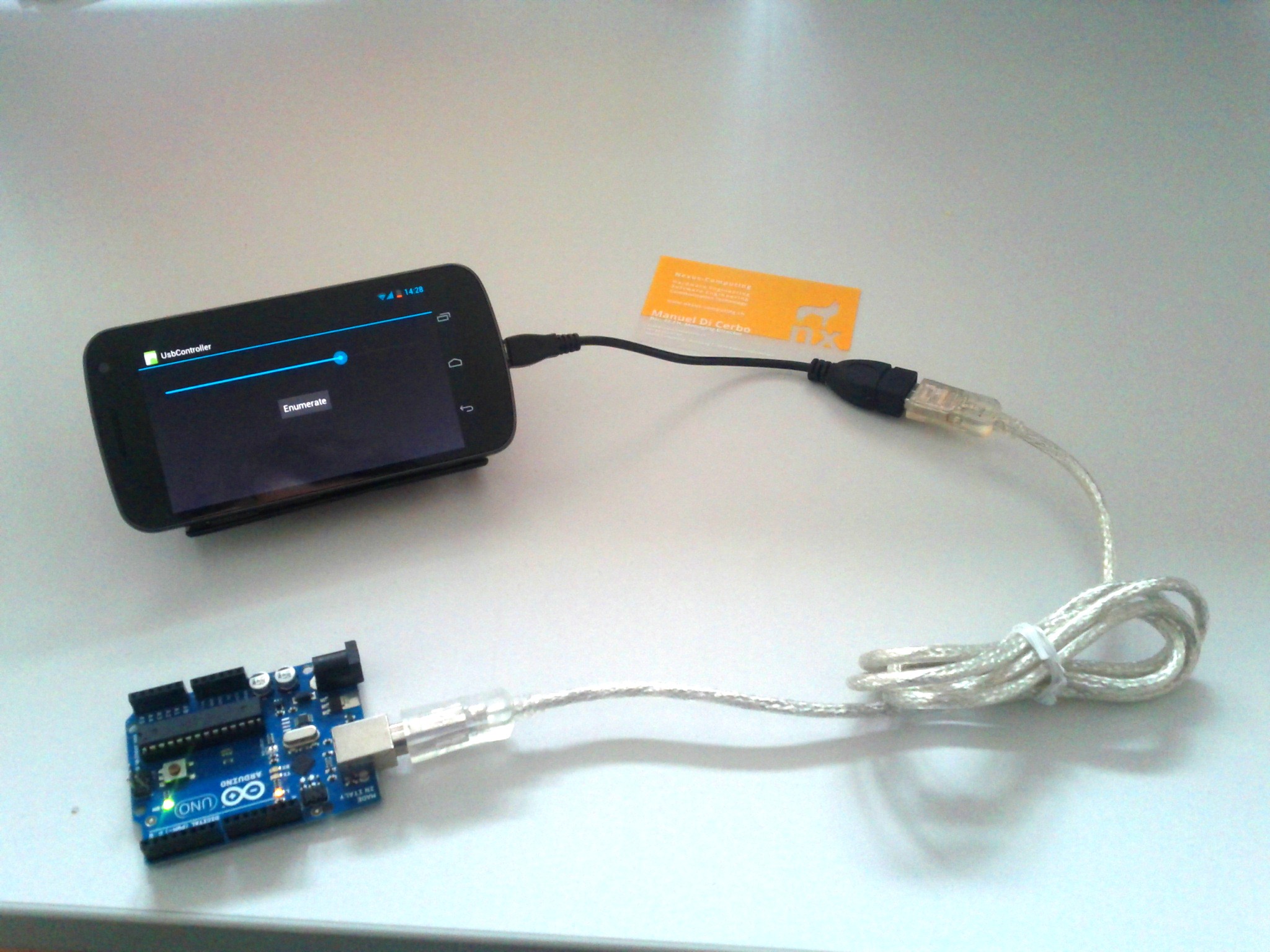

For developing this example we have used a Galaxy Nexus Phone with an USB-OTG adapter cable. It has also been successfully tested with an Android Tablet, the Acer Iconia Tab A500, this tablet does not need any additional adapter cables.

This post concludes the 3-Part Arduino USB communication series. Feel free to post any questions or feedback/ideas in the comments section or contact us via E-Mail (http://www.nexus-computing.ch).

All code you find in this post can be used under GPL for your own projects.

The following section “About Android and USB Host” again concludes why USB-Host is becoming more and more important for mobile devices and points out main differences between Android ADK (Android Accessory Development Kit) and the Android USB Host API.

EDIT: control transfers for FTDI equiped Arduinos
Since we got requested a lot if the FTDI Usb-Serial converter will work too, here ist the control transfer code that needs to be exchanged. No warranties though

conn.controlTransfer(0x40, 0, 0, 0, null, 0, 0);// reset
conn.controlTransfer(0x40, 0, 1, 0, null, 0, 0);// clear Rx
conn.controlTransfer(0x40, 0, 2, 0, null, 0, 0);// clear Tx
conn.controlTransfer(0x40, 0x03, 0x4138, 0, null, 0, 0);

Source Links

Android App: UsbController.tar.gz*
Arduino main: led_pwm.c

* You may need to change the PID value in UsbControllerActivity.java on line 38, if you have an Arduino Uno Rev3 or higher. You can check the VID/PID value with ‘lsusb’ after connecting the Arduino to your computer.

About Android and USB Host

Lately it has become more and more popular to use tablets or mobile phones to communicate with the outside world over USB. After all, many devices now feature a full USB Host, either with a USB-OTG converter or even with a full sized USB Type A interface. Also, the future promises even more host availability on mobile phones. This opens up an entire range of new possibilities for already existing hardware as well as newly designed hardware for phones.

Not too long ago, Android received its own USB API. It was at the Google I/O in summer 2011 when the “Android Open Accessory Development Kit” was announced and released. However it lacked of a few crucial points. The API implied that there is an external USB host, acting as a “master” if you will.
On the one hand, this means that an already existing USB device mode gadget cannot work with your Android device. Therefore, if a manufacturer wanted to support Android phones it was necessary to create new hardware as well as new firmware. Secondly, the new hardware had to be designed to power itself and also deliver power the Android device; this implied that mobile gadgets require their own power source. And secondly, there was another issue: only devices running Android 2.3.4+ were shipped with the new API. Even then, it was up to the manufacturer to actually include the required stack in the OS.

But wait, there is another way to communicate over USB. At the same time (Google I/O) the Android USB Host API has been published for Android 3.1+. Starting with the second half of 2011, Android devices appeared which supported USB OTG (although devices with Android version < 3.1 were not supporting the API). With an appropriate adapter it has become possible for Android to act as USB Host. This meant that already present USB hardware has become compatible with the OS. As long as the kernel on the Android device supported the USB standard driver of the hardware (mass storage, input, etc.), Android would be able to use it and therefore open up a new range of extra devices compatible with the system.

However, there are many devices that have not been “compatible” from the beginning. For instance, let’s say your common RFID reader. It most likely uses a USB-serial port and probably comes with a Linux or Windows driver as well as some software. Most Android tablets will come without the usb-serial driver for your RFID reader however. Therefore, if you want to load your driver you will need to root your tablet, determine the version of your current kernel, find the kernel sources online, hope that everything compiles to have your driver ready and then load it onto your tablet. In the end, when you finally have your kernel driver running, you will be required to write C code as well as some JNI glue to communicate with your Activity or Service in Android. All in all, this approach is not very straightforward.

Writing your own USB soft driver

There is a very elegant solution to aforementioned problem. It requires far less skills in hacking and porting than the mentioned approach. However, you will require some advanced knowledge in Android programming as well as some USB know-how.
You can write your own “soft driver” in Android. Since the USB Host API has been released, it is now possible to communicate with any USB device using the most commonly seen USB transfers (control, interrupt, bulk). In the end, your result will be portable across all Android devices that have USB host enabled and have Android version 3.1+. Moreover, this solution does NOT require root access to the tablet or phone. It is currently the only viable solution that does not require the user to have any know-how of rooting/hacking the device and risk losing warranty in the process.
The above Android application uses exactly this approach. It represents a very basic soft driver for the Arduino’s on-board USB-to-serial converter.

267 thoughts on “Android USB Host + Arduino: How to communicate without rooting your Android Tablet or Phone”

Leon Nicholls says:

February 9, 2012 at 22:41

I tried this on both my 3.1 and 3.2 Google TV devices but no luck. I get an ArrayIndexOutOfBoundsException error with when tried to get the interface:
if (!conn.claimInterface(mDevice.getInterface(1), true)) {

When I change the index to 0, to code runs. The user is prompted for USB permission, but then then system logs shows an error that the USB device has been disconnected. Moving the slider in the UI does not do anything for the Arduino Uno.

Reply
1. Manuel Di Cerbo says:

  February 9, 2012 at 23:32
  Hey Leon

  Is it possible that you have an Arduino of Rev. 1 that is equipped with a FTDI chip? If so, then you can try to initialize it with the commands:
```
conn.controlTransfer(0x40, 0, 0, 0, null, 0, 0);// reset
conn.controlTransfer(0x40, 0, 1, 0, null, 0, 0);// clear Rx
conn.controlTransfer(0x40, 0, 2, 0, null, 0, 0);// clear Tx
conn.controlTransfer(0x40, 0x03, 0x4138, 0, null, 0, 0);
```
  instead of the ones for the Arduino serial controller.

  Also please check with lsusb on your computer what interfaces you have on your Arduino.

  All the best
  Manuel
  Reply
Leon Nicholls says:

February 10, 2012 at 04:27

I have a Rev. 2 Arduino Uno. I think the issue is with Google TV and not your instructions. Also, I changed the VID + PID to the ones listed with enumerate since I did not see the Arduino VID listed. That means that the Arduino device is not recognized over USB.

Reply
Pascal Strupenus says:

February 13, 2012 at 11:02

I think I like your article! Nice!

Reply
Thorsten Schnier says:

February 16, 2012 at 13:47

Thank you for this post, exactly what I was looking for!

I am planning to use one of those cheap Chinese apad devices for a home controller (combining wifi, storage, sound and a good 7in touchscreen for around Â£50), but was not sure how to connect it to the other nodes. An ioio should work, but that’s not trivial to connect to an RFM12B radio. Those android accessory kit based arduino mega devices are rather expensive, and it’s not guaranteed the tablets will support that mode. USB OTG however is available, so from your article I think I should be able to connect to a JeeNode USB, which would be perfect.

You said this mode doesn’t _need_ the gadget to supply 5V – do you know if it possible to provide power in this mode?

Reply
1. Manuel Di Cerbo says:

  February 16, 2012 at 16:25

  Hello Thorsten!

  Thank you for your feedback, we are were glad that the post helped you out

  About the power supply: The Tablet will feed the 5[V] (in practice it’s more about 4[V]) to the Arduino UNO or in your case the the JeeNode.
  Note that the JeeNode seems to be equiped with an FTDI chip. To initiate communication use the code snippet mentioned in the earlier comment.

  All the best and keep us posted
  Manuel

  Reply
Zach McCormick & Zsolt Szabo says:

February 20, 2012 at 15:01

Hello!

We are working on a project that uses a FTDI USB-to-serial converter and have been struggling with communicating between Android and the device. Your comment for the FTDI chip helps, but maybe isn’t exactly correct for us. We are trying to write a soft driver for our device, and our controller uses a 56k baud rate, 8 data bits, 1 stop bit, and no parity. Do you have a link to any kind of reference or documentation on these control transfer codes? I have done a few Google searches but we have not found anything very helpful.

Our Android device uses 4 byte codes (3 letters and a ‘\n’) to communicate with the board, and I can do it using minicom on Linux, but nothing happens when we use bulkTransfer() on Android (but it returns 1 for each byte sent, so I think it is successful).

If this is too much to explain to us, then if you know of any documentation or links that would be helpful to us, then please let us know! Thank you for this blog post – it was very helpful already!

Thanks,

Zach and Zsolt

Reply
1. Manuel Di Cerbo says:

  February 20, 2012 at 15:17
  Hi Zach and Zsolt,

  For this kind of information you need to have a look at the “libftdi” library which is open source.
  Link: http://www.intra2net.com/en/developer/libftdi/download.php

  In there you will find the setup routine for the 56k baud rate (the one in the ftdi example is 9.6k).

  Have a look at the method:
```
int ftdi_set_baudrate(struct ftdi_context *ftdi, int baudrate)
```
  In there you will find the correct control transfer for setting the baudrate.

  Hope this helps you to get started

  All the best
  Manuel
  Reply
Pingback: Android 3.1 devices have USB host mode. Hereâ€™s how to use it. « Hackaday « Cool Internet Projects
Pingback: Android.one.pl » Blog Archive » Sterowanie Arduino z Androida
Thorsten Schnier says:

February 24, 2012 at 22:51

Manuel,
Have you ever tried to run this in an android virtual device on a PC? That would make the development cycle a lot easier, since my tablet only has one (USB OTG) port. I tried, it didn’t find any ports, but maybe you got it to work?

Power is turning out to be a problem, as the tablet can only charge through USB – and I want it continuously powered (always on). But if it’s the host, it will want to provide power, not draw it. I found that there is a three way (A device, B device, charger) option exactly for this in the OTG standard (see ref 6 in http://en.wikipedia.org/wiki/USB_On-The-Go) but I’ve not come across anyone or anything actually implementing that. From my reading of the spec, it looks like a 240k resistor in the host plug should be all that’s required, assuming the tablet actuall follows that part of the OTG spec…

Reply
1. Manuel Di Cerbo says:

  March 5, 2012 at 15:28

  Hello Thorsten,

  I did not forget about your comment here There is actually a bit of an issue if you have a Galaxy Nexus or a Galaxy 10.1 Tab since those devices charge over USB. Now … I believe it is theoretically possible to supply the host side with 5V on the Hub, however, I did not test it. Did you have any new findings on this?

  All the best
  Manuel

  Reply
  1. savcat says:

    March 4, 2013 at 19:31

    I am interested in using a Galaxy Nexus to send data to an Arduino Rev3, but also be able to receive power somehow as well. Any progress on this possibility?

    Reply
    1. Manuel Di Cerbo says:

      March 4, 2013 at 19:34

      Hey Savcat,

      This will work with the Gnex.
      Check the few comments from me before on how to get started with sending data from the Arduino.
      What you can do is for instance write a sketch and send data to your gnex with Serial.write(…).

      On the Android you would issue a bulkTransfer to the Bulk OUT Endpoint of the Arduino Serial device.

      Hope that gets you started

      All the best
      Manuel

      Reply
Qifeng Shao says:

March 12, 2012 at 14:18

Thank you very much, Based on you post i implemented a car controlled and powered by galaxy nexus
http://v.youku.com/v_show/id_XMzY0NjIzMDQ0.html

Reply
1. Manuel Di Cerbo says:

  March 12, 2012 at 14:25

  Wow that looks awesome thanks for sharing!

  All the best
  Manuel

  Reply
allankliu says:

March 14, 2012 at 02:26

Great job. I am trying to build it on my Andoird-x86 platform, so we are not limited by the devices. Does anyone ever try it?

Reply
allankliu says:

March 14, 2012 at 04:09

The Android-x86 group has a discussion for similar topic, for setup a demo project for Android-x86 and Arduino. The developer of Android-x86 told me that I have to root my device, load the FTDI kernel module before going to develop my USB host app. I am quite confused now.

Should I hack the kernel anyway? Or Galaxy Nexus has enabled support for FTDI already? Galaxy Nexus is quite expensive right now. I have to use Android-x86 for this moment.

Reply
allankliu says:

March 14, 2012 at 04:16

“Please note that this will only work with devices that actually support both USB host mode (hardware, kernel requirement) as well as the Android USB host API (Android OS requirement).”

If I am right, the kernel requirement means some kernel module like uno.ko being modprobe’d in kernel.

Reply
allankliu says:

March 14, 2012 at 07:59

I checked Android-x86-v3.2 in VirtualBox. Indeed, there is no FTDI kernel driver loaded.

dmesg | grep “usb”
…usbcore: registered new interface driver usbserial
…usbserial: USB Serial Driver Core

lsmod | grep “usb”
usbserial 23303 2 option, usb_wwan, Live 0xd0909000

Does it mean USBserial is supported in Android-x86 already? Just not for FTDI?

Reply
1. Manuel Di Cerbo says:

  March 14, 2012 at 13:18

  Hey there!

  By Kernel Driver I mean the USB OTG Host Support. For the code you are actually required to not have the ftdi kernel driver loaded since you don’t want the USB device node to be already claimed by another application (the kernel driver). In my opinion: use rmmod to kick the driver as soon as the device is connected or use the terminos library to work with it and write some JNI glue… I think the first is the easier way to go

  All the best with your project!
  Manuel

  Reply
  1. Paloma says:

    March 6, 2013 at 13:47

    Hey Manuel! I am trying to make this work in the ADT emulator, but I don`t know how to do it!
    I always have the same answer: “enumerating”, “no more devices found”.
    I have an FTDI chip connected to an USB port on my PC, but I don`t know how to tell it to the emulator. I have also tried to use the usb debugging with muy phone, but I have not been able to make it work.

    I’d really apreciate any help.

    Thank you so much!

    Reply
    1. Manuel Di Cerbo says:

      March 6, 2013 at 13:52

      Hey Paloma,

      unfortunately the usb host api will not work on the emulator.
      It’s a shame wish they would implement at least something for linux distros. Though I know permissions on the device nodes might become an issue. Still, too bad

      You will have to go with a real device and try to find out if it supports the android usb host api. If your device does not support it there is always the possibility to look for support with a custom ROM from Cyanogenmod or others.

      All the best
      Manuel

      Reply
      1. Paloma says:

        April 1, 2013 at 14:08

        Hi Manuel! Thank you!
        Now I’m working with a tablet (UNUSUAL Votex Pocket) that performs the USB OTG mode. When I run the usbcontroller.apk and press “enumerate” nothing happens. I am testing with an FTDI chip and also with a pendrive (changing the PID and VID values). I have also ran the D2XXSampleActivity.apk with same results. Any idea about what I’m doing wrong?
        Thank you so much in advance.
      2. Manuel Di Cerbo says:

        April 2, 2013 at 16:23

        Hello Paloma,

        The problem might be that your tablet does not support the usb host api. You are doing everything right but your OEM did something wrong. Although some devices are able to use USB OTG with flash storage or input device the API is missing (resulting in an empty list of USB devices).

        If you have a rooted device you can add the file

        android.hardware.usb.host.xml.

        Check the other replies in the comments for more details.

        All the best
        Manuel
    2. Paloma says:

      April 3, 2013 at 11:08

      Thank you so much Manuel…you found my problem! =)
      THANK YOU!

      Reply
      1. Manuel Di Cerbo says:

        April 3, 2013 at 16:12

        No Problem Happy to help!
giovani says:

March 17, 2012 at 01:11

I previously left a message regarding article “Creating a Serial to USB driver using the Android USB-Host API” (http://android.serverbox.ch/?p=370)
where I asked how Slick USB 2 Serial Library was likely implemented. After reading this article, I think I finally answered my question. It appears that, like Manual Di Cerbo et al, they ported the FTDI USB Library (http://www.intra2net.com/en/developer/libftdi/) to Android as “soft driver”. Please correct me if I’m wrong.

I’ve been wanting to create an application to communicate with a device serially – send commands, read back results (typical usage, nothing complicated). I didn’t want to write (skill set minimal) / buy a USB to Serial driver (project for self) or root the Android device (make project easy). I’m assuming I can use this “soft driver” to do just that and concentrate on the application sending commands and reading data. Am I correct?

Reply
1. Manuel Di Cerbo says:

  March 17, 2012 at 01:28

  Hi Giovani,

  I think as well, the purchasable solution is done the same way, however, I never had a closer look. We did not port the library (libftdi) but only took the setup method that is designed for the Vinco Board Serial driver. It appears that it works with other chips too though.

  Generally the solution in the article will set you to go with all your requirements. Note though that it is up to the OEM to include Host Mode (Kernel side & Android API side) and not all Android 3.1+ devices (youngest ICS of GSII has no OTG support) will support USB OTG out of the box. With most tablets you should be generally on the clear side for USB Host. Also the Galaxy Nexus will work with an OTG converter.

  Hope this gets you started

  All the best
  Manuel

  Reply
zlon says:

March 17, 2012 at 14:18

Hello Manuel,
I am working on a project about the IEEE802.15.4/ZigBee. The ultimate goal is to setup a communication interface between the ZigBee wireless board and an Android phone application over USB. The preloaded firmware on the CC2531 chip on ZigBee board presents itself as an USB Communication Device Class (CDC). From your article I want to write my own USB soft driver using the USB Host APIï¼Œbut I am not know if the ZigBee board can work with the Android phone. How the Android phone enumerate the ZigBee boardï¼ŸShould I write the ZigBee kernel driverï¼Ÿ
Do you think this approach is OKï¼ŸIf donnâ€™tï¼Œplease give me some suggestions. Thank you for this blog post â€“ it was very helpful already!

Thanks,
Zlon

Reply
1. Manuel Di Cerbo says:

  March 17, 2012 at 14:20

  Hello Zion,

  Thank you for your comment on our blog. You can use the approach on the blogpost to communicate with your zigbee device as if you would communicate over serial. No Kernel programming needed whatsoever. The CDC device means that a Serial Driver is in place. I am guessing it is an FTDI one, so setup is a bit different than from the Arduino (see the comments in the post and the FTDI serial driver post).

  All the best
  Manuel

  Reply
zlon says:

March 17, 2012 at 17:13

Hello Manuel,
Thanks for your quick answer! The CC2531 isn’t the FTDI chip,but it is an TI one,and it has source code for CDC libraries. In your post, based on libftdi, you write soft driver using the Android USB Host API to connect an FTDI controller via USB. But the CC2531 is not an FTDI oneï¼ŒI write my own soft driver using the Android USB Host APIï¼Œdo I have to need the related libraries ï¼Ÿï¼ˆThe TI has not libraries in Androidï¼‰

Thanks
Zlon

Reply
1. Manuel Di Cerbo says:

  March 17, 2012 at 17:19

  Hi Zion

  The Arduino also uses the CDC ACM standard class. Try if our Arduino setup routine works with your TI chip. My best guess is it will

  All the best
  Manuel

  Reply
Thibault says:

March 30, 2012 at 17:44

Hello Manuel,

Very interessant article. I think that USB Host is the most exciting device for Smartphone.
I connect my Galaxy Nexus (4.0.2) to Arduino UNO via USB following your instruction and … great job. Every things work fine !
I try to connect my Galaxy S2 with the official release of ICS 4.0.3 but nothing works. It seems that the Galaxy S2 can’t communicate with Arduino. When I debug, it seems that Usb Device is not discovered.
Have you any idea ?
It’s probably a problem with the official GS2 Kernel but I am not sure.
Thanks
Thibault

Reply
1. Manuel Di Cerbo says:

  March 30, 2012 at 17:52

  You are completely right, I tried it too with the i9100 and it does not work, because for some (to me) unexplainable reason the engineers of Samsung did not feel like compiling the kernel (though for external hard drives there is still a switch in the settings) with USB OTG support. It is such a shame and yet not really surprising, especially if you look at it in context with what they are pulling off regarding ICS UI (everything that makes ICS awesome is missing, they successfully took the 4.0 source and downgraded it to 2.2, congrats you guys).

  My hopes remain that they will bring an update that enables OTG again.

  All the best
  Manuel

  Reply
Thibault says:

March 31, 2012 at 11:59

Hi Manuel,

Thanks for your quick answer.
I also hope that there will be an update …

All the best

Thibault

Reply
Lennert says:

April 3, 2012 at 10:10

Hi there!

Thanks for sharing this, very interesting! Right now I’m trying to set up communication with an arduino uno Rev 2 and a samsung galaxy tab with an usb host adapter. For some reason the enumeration does not find my uno (nor my FTDI development kit). However when I plug in some logitech headset it does find a VID and PID. Any suggestions how to fix this?

What I actually want to achieve is to fix communication with an FT230X chip, is that possible? Or is it only with FT232 chips (according to your other article).

Thanks!

Reply
1. Manuel Di Cerbo says:

  April 3, 2012 at 10:46

  Hi Lennert,

  Yesterday I received my own USB Host Adapter for the Galaxy Tab (P7510). I haven’t had a chance to play around with it yet, but I will try it too (with the Arduino Rev. 3). My guess is, if it does not work, then it’s a Samsung mess up, I heard already of similar problems. I will get back to you as soon as I know more.

  All the best
  Manuel

  Reply
Lennert says:

April 3, 2012 at 11:27

Hi Manuel,

Alright, I’ll keep track of this website. I also wonder if that is my problem with FTDI chips, can’t wait to hear from you!

Greetings,

Lennert

Reply
1. Manuel Di Cerbo says:

  April 3, 2012 at 15:29

  Hi Lennert,

  Bad news, I just checked if the USB API works on the P7510 and it does not at least with the current Honeycomb version. Hopes remain that Samsung is going to change that with ICS, yet history tells an entirely different story

  Your only way to fix communication right now is to go with another tablet, sadly. The Acer A500 works for sure, however, it is nowhere as nicely designed as the Samsung.

  All the best
  Manuel

  Reply
Lennert says:

April 3, 2012 at 15:44

Hi Manuel,

Hmm that’s a shame. I’ve bought a samsung galaxy tab 10.1 for development hoping that it would support everything I could think of. Do you think this has something to do that none of my FTDI chips are found by the samsung tablet? If I try to print the VID:PID I get nothing.

Greetings,

Lennert

Reply
1. Manuel Di Cerbo says:

  April 4, 2012 at 09:28

  Hi Lennert,

  I tested it with the new Arduino Board that is equipped with the Atmel-Lufa variant of the serial converter. I think it is unrelated to the type of converter. Maybe there is a custom ROM for the P7510 which will work with the USB Host API.

  All the best
  Manuel

  Reply
Neurobe says:

April 4, 2012 at 07:18

Archos G9
Hi Guys, since we seem to be getting a database of what works and what doesn’t, I would like to report that the Archos G9 (running ICS, and it has both OTG and a nice recessed Type A USB, nominally for a 3G stick, but also works for memory sticks): Type A port does not recognise an FT232. “”Cannot enable port1. Maybe the USB cable is bad?” I have not tried the OTG port (waiting on an adaptor to arrive).

Reply
1. Manuel Di Cerbo says:

  April 4, 2012 at 09:29

  Hi Neurobe,

  Thank you for the input!
  Hope it works with OTG.

  All the best
  Manuel

  Reply
Neurobe says:

April 5, 2012 at 02:14

Lennert,
Try connecting via a hi-speed hub. Let us know the result!

Reply
Neurobe says:

April 5, 2012 at 04:12

Hi Manuel,
This is the source of the problem with the Archos G9:
Beagleboard HW Manual:
“NOTE: Beagle USB Host only supports HS USB (480Mbp/S). Low Speed and Full Speed devices are not supported unless they are connected through a USB Hub prior to connection to the Beagle. The OTG port does support LS and FS devices.”

Manuel, are you certain that on the Acer A500, the Type A USB port supports LS & FS devices?

tks, neurobe

Reply
1. Manuel Di Cerbo says:

  April 5, 2012 at 11:47

  Hi Neurobe,

  I am certain that it works with FS devices (the Arduino USB-Serial controller) as well as with HS devices (our Oscilloscope with the FX2LP is one).

  All the best
  Manuel

  Reply
Lennert says:

April 5, 2012 at 15:32

Hi Manuel,

I returned my Samsung galaxy tab and bought a Acer Iconia A200. Works like a charm! It also detects my FT230 chip

Thanks!

Lennert

Reply
Neurobe says:

April 6, 2012 at 23:31

summarising for two USB port tablets…
USB Type A USB micro
—————— —————
Archos G9 Host HS only Full OTG functionality
(requires hub for FS) (ie works fully)

Iconia A200 Host USB peripheral only
(and A500?) (ie works fully)

hope this is useful.

Reply
Neurobe says:

April 6, 2012 at 23:35

Post lost formatting so I will need to narrate..
Archos G9 USB Type A port works as Host but only at high speed. Use a HS hub to connect lower speed devices.
Archos G9 USB micro port works fully as OTG port

Acer Iconia A200 USB Type A port works a sa fully functional Host port (all speeds)
Acer Iconia A200 USB micro port works as a peripheral USB device only.
tks

Reply
1. Manuel Di Cerbo says:

  April 12, 2012 at 23:18

  Thank you so much Neurobe! This is very helpful!

  All the best
  Manuel

  Reply
Emanuele Ziglioli says:

April 11, 2012 at 03:23

Hi.

great blog, very informative!

We’ve got a Galaxy Tab 10.1 P7510 and connecting a FTDI device doesn’t work as some of you have written.
I’d like to build the kernel with the setting:
CONFIG_USB_SEC_WHITELIST = n

I’ve checked out a kernel from
https://github.com/GalaxyTab101/samsung-kernel-galaxytab101

But it doesn’t build for me, have never done this before.
If anyone is keen to try, please let us know! @ZiglioNZ
thanks!

Reply
Emanuele Ziglioli says:

April 11, 2012 at 23:15

An update: I’ve downloaded and built “GT-P7510_OpenSource_Update1” from Samsung’s web site.
Now I’ve got zImage but don’t know what to do with it.
‘Fastboot’ doesn’t work out of the box with Samsung devices (of course, what was I thinking…).
So I need to find a way to test this kernel

Reply
1. Manuel Di Cerbo says:

  April 12, 2012 at 23:18

  Hello Emanuele,

  Have you tried heimdall for flashing the tablet?

  All the best
  Manuel

  Reply
2. Manuel Di Cerbo says:

  May 8, 2012 at 12:17

  Hey Emanuele,

  Sorry to answer that late…
  In Samsung builds you link the initramfs statically to the kernel. This is done via kernel compile option (initramfs=”somepath” or similar). 3MB is very possible, however, without the initramfs.

  All the best
  Manuel

  Reply
Emanuele Ziglioli says:

April 13, 2012 at 00:18

Hi Manuel,

no, I’ve never heard about heimdall before, I’ll have a look.
I was gonna try with Odin that seems to be the standard way with Samsung.
It puzzles me that the zImage I’ve build is just 3MB!

So, sorry another question, would updating the kernel leave the ‘platform’ bit intact?
I’m going to look for an ‘official’ kernel just in case something goes wrong.

Reply
Vincent Zhao says:

May 3, 2012 at 17:47

Hi:Hi Manuel,
Learned a lot from your blog and all discussions!

I have got a Galaxy Tab 10.1 P7510 , facing the same problem to enumerate the usb-convert2serial device, I don’t know how resolve it, whether I should root the tablet or build my own ROM.

If anyone faced the same problem and find a way out, please let us konw, tks!

Reply
1. Manuel Di Cerbo says:

  May 8, 2012 at 12:12

  Hi Vincent,

  I think that rooting the tablet won’t help you, since Samsung white-listed only certain devices in the kernel. So not even root would help you
  Also, I did not check if there are any good ROMs for it, since I concentrate on developing with my A500 (which even got ICS recently).

  All the best
  Manuel

  Reply
yangs says:

May 13, 2012 at 08:08

Hi Manuel,
Thanks for sharing your project. Iâ€™ve downloaded your source code, but I met a problem when compiling with led_pwm.c. It said that “error: ‘PB5’ was not declared in this scope”. So I rewrote it to “#define LED 15” in line 32 and compiled with no error. However, it didn’t work with android app. Is it correct?
Thanks for your help.

Reply
yangs says:

May 13, 2012 at 09:05

Sorry, I mean I rewrote it to â€œ#define LED 13â€³ in line 32 .

Reply
Steffen says:

May 16, 2012 at 00:47

Amazing. Thanks for that code. I’ll use it for my boardcomputer.

Reply
Petr Krizek says:

May 17, 2012 at 12:01

Hi Manuel,

I have a problem with connect to tablet Yarvik TAB 224 (OS 4.0.3)
Tablet no transfer byte.
Can you help me please ?

Petr

Reply
korj says:

May 21, 2012 at 18:26

In my case compilation was OK, but the LED didnt work.
After changing the code a little bit (operation Turn On the LED goes first) the
program is turning ON the LED but doesnt turn it OFF. What is the problem?
for(;;) {
pause = data;
PORTB &= (1 << LED);
for(i = 0; i < pause; i++)
_delay_us(10);
PORTB |= ~(1 << LED);
for(i = 0; i < 255-pause; i++)
_delay_us(10);
}

I have tried manually setting the pause variable but it is the same.

Reply
Felipe Souza says:

May 24, 2012 at 04:26

Hi!
After I compiled the code and the debugger sent it to my MID7022 tablet, it gives an error with the “if (!conn.claimInterface(mDevice.getInterface(1), true)) {” line.And then it closes the app. According with the debugger, the error is: UsbDevice – > arrayIndexOutOfBoundsException.

I am not using it with an arduino, but with a Prolific usb->serial, with the correct PID and VID!

Any clue??? Thanks!

public void run() {//here the main USB functionality is implemented
UsbDeviceConnection conn = mUsbManager.openDevice(mDevice);
if (!conn.claimInterface(mDevice.getInterface(1), true)) { // ERROR
return;

Reply
1. Manuel Di Cerbo says:

  May 24, 2012 at 16:19

  Hi Felipe,

  Check on which interface your bulk endpoints are running (using libusb -v for instance).

  With getInterface(1) the second interface is selected and my guess is, you need the first one.
  Also please note that the setup routine in this example is for the Atmega16u2 with LUFA and does probably not comply with the profilic.

  Hope that helps

  All the best
  Manuel

  Reply
Felipe Souza says:

May 24, 2012 at 22:00

Hi Manuel,

I thought that this setup example was for the FTDI…..no surprise it not connected, lol!

Just for note, I had more lucky with the FTDI_USB example of yours ( http://android.serverbox.ch/?p=370 ) It connected right away with my FT232RL chipset!

Thanks for the reply!

Reply
Arvind says:

June 2, 2012 at 18:15

Hi Manuel,

In your post you mentioned “this will only work with devices that actually support both USB host mode (hardware, kernel requirement)”

I want to understand what you mean by “kernel requirement”.

I have been using a very cheap tablet that runs ICS and has a working USB host controller (tested with USB flashdrive, mice). So the “hardware” requirement is fulfilled.

But I wasn’t able to use a USB-serial device with the tablet. I knew that the problem was with kernel modules as cdc-acm, ftd_sio.ko, etc were missing. So I got the cdc-acm.ko module for my kernel and loaded using insmod. Now, when I connect my device, the cdc-acm process fires and I can see my device as /ttyACM0. All well so far..

I have made an app similar to yours that retrieves list of devices connected using UsbManager.getDeviceList() API. This works on higher end tablets like Acer Iconia, Xoom, etc. But it fails for the current tablet (based on Allwinner A10) I have.

Is this due to the kernel requirement? If, so what can I do to enable the host dunctionality with CDC ACM devices?

Thanks!
-Arvind

Reply
1. Manuel Di Cerbo says:

  June 2, 2012 at 18:28

  Hi Arvind!

  With “Kernel requirement” I meant that the kernel has to support USB OTG for devices that only feature a micro USB port. Also the Kernel must not have a “USB Device whitelist” in place like the Galaxy Tab does.

  To me it sounds like the Android USB Host API has not been completely implemented on your tablet. Is your device simply not enumerated when using getDeviceList() or is there an error thrown?

  All the best
  Manuel

  Reply
tabletguy says:

June 2, 2012 at 21:04

Arvind,

Apparently some of the Allwinner A10 ICS 4.0.3 tablets (mine is a Coby 7042-4) don’t come with the XML definitions for USB Host permissions. Check out post #29 on this thread: http://forum.xda-developers.com/showthread.php?t=1499124&page=3

Add that XML file to your tablet and reboot it. Next time you run Manuel’s code it will prompt you for permissions and correctly enumerate your USB devices. I struggled with this for days. Hope this helps you along, and thanks to the author and those who contributed.

Reply
1. Manuel Di Cerbo says:

  June 2, 2012 at 21:05

  Thank you a lot for clearing that up!

  Reply
Arvind says:

June 3, 2012 at 14:29

tabletguy and Manuel,

Thanks! It worked. Phew.. I had almost given hope on CDC devices thinking that the drivers were missing etc. and moved onto HID :P. Thanks to the author (sztupy on XDA) indeed!

On another note, I noticed that HID devices don’t show up on the deviceList. Any workarounds for this, or is it how it’s supposed to work?

Basically I noticed that cdc-acm.ko wasn’t there on my tablet by default, so I went looking for device classes that don’t require drivers (like HID). But I guess I’d be moving away from the Host APIs in that case, wouldn’t I?

Another thing noted is that usbserial.ko is present on almost every device.. even on phones without Host hardware. Any idea what it is for?

Regards,
-Arvind

Reply
1. Manuel Di Cerbo says:

  June 4, 2012 at 15:20

  Hey Arvind,

  About the HID: I actually never tried to connect. However, since the interfaces of the HID device is probably already claimed by the input driver, it would be difficult to use them in the app.

  To communicate with the Arduino USB-Serial Converter or an FTDI you should not have the kernel module in place, but rather use the Usb Host API as demonstrated in the post. However, if you already went through the trouble of rooting the tablet and compiling the kernel module, you could for sure just use the “terminos” C library to communicate with the serial device and then write some sort of JNI wrapper to communicate from your application.

  Regarding Serial Driver: I noticed too, that on the A500 a devicenode /dev/ttyACM0 is created. Maybe it is just the default configuration of the Kernel and the OEM did not really look closely into it.

  All the best
  Manuel

  Reply
Michal says:

June 7, 2012 at 12:40

Hi.
Basic question but I assume answer may be useful for many readers: is it possible to test attached examples from virtual android device run on PC instead of real android device? I uploaded soft to arduino uno and built code in eclipse. I connected arduino to PC’s USB port and started virtual device with Android 4.0. Now I am wondering where is the problem as changes in slider position do not impact brightness of the LED.

Regards
Michal

Reply
1. Manuel Di Cerbo says:

  June 7, 2012 at 12:55

  Hey Michal!

  Sadly the emulator does not support USB forwarding. Thus, it is not possible to communicate with the Arduino with the mentioned method. However, you could give Virtualbox or a similar Virtualisation Software a try with Android x86.

  All the best
  Manuel

  Reply
Mateusz says:

June 9, 2012 at 03:38

Hi Manuel,

Thank You very much for wonderful article.
My intention is to print labels from Android device (phone or tablet) on Brother QL-series printer (via USB).
By now – I am able to communitate with printer from simple desktop Java app using libusb library (under Windows7).
Next I would like to do the same from Android device (connected with Brother QL-printer via USB).
I would be very happy, if You could answer a few questions:
1. As I understand – the Android device should act as USB host (cause Android device initiates conversation with printer). Am I right ?
2. As I understand – I need Android device 3.1+ (2.3.4 will be NOT enough, since it cannot act as USB Host). Am I right ?
3. Does every device with Android 3.1+ (with has USB host feature) support Open Accessory Development Kit (ADK) in USB host mode ?
4. If answer to question 4. is NO, then do You know any cheap tablets that support ADK in Host USB mode (cheap tablets like GoClever, Lark, Vordon, Omega) ?

Thank You for answer.

Best Regards,
Mateusz

Reply
1. Manuel Di Cerbo says:

  June 9, 2012 at 12:33

  Hi Mateusz,

  1. Yes, the Android side has to be USB Host capable
  2. Correct, the USB Host API is only supported since 3.1+
  3. There are devices that support both, the USB Host API as well as the USB Accessory API (the Xoom I think is one of them). Technically this also could work at the same time as long as the device supports the Accessory APK and has a USB Host port. However, you cannot use the Accessory API over USB Host, this will not work.
  4. So, if you have two physical USB Ports AND as well a micro USB Port (like Acer A500, A200 for instance), then it *might* be possible to use an Accessory at the same time as a normal USB device. If I understand you correctly this is what you want to do, right?`:)

  All the best
  Manuel

  Reply
Mateusz says:

June 9, 2012 at 19:02

Manuel,

I am grateful to You for Your help Questions 1 and 2 are now clear.
But I would like to clarify questions 3 and 4. As far as I know – I don’t need an Accessory API. I only need the USB Host API (Android will be USB host, the printer will be USB device). So the only thing I need is a tablet that can act as USB host and supports USB host API. You have mentioned about USB port kinds (standard USB and micro USB).I wonder if USB port size (standard/micro) has anything to do with USB Host support.

Case 1: If tablet has at least one USB standard port (standard size) – does it mean it supports USB Host ?
Case 2: If tablet has only micro USB port with OTG (with special adapter) – does it mean it support USB host ?

Question: If tablet has hardware support for USB host (case 1 or 2), does it mean that it allow to access USB from android application level (using USB Host API) ?

Do You know any website with list of devices that support USB Host API ?

Thank You for Your answer.

Best Regards,
Mateusz

Reply
1. Manuel Di Cerbo says:

  June 9, 2012 at 19:29

  Hello Mateusz,

  I am happy to help out If you see a device with a full sized USB host A Port then you can be sure that the device actually supports USB Host. However, I came across cases where people found out that the USB Host API was not in place or they had to tweak something to get it to work.

  Then, some devices support USB OTG. Some don’t. Although almost all the hardware parts would support it, some OEMs cut it out of the Kernel. The Galaxy Nexus is one of the devices that do support USB OTG. The Galaxy S2 does not.

  Also the Galaxy 10.1 Tabs do not support the USB Host API *although* they support USB OTG for mass storage. They just whitelist only mass storage, so you cannot use the API (That is incredibly stupid in my eyes and there is no justification for this – it is pure idiocy of Samsung nothing else).

  To wrap up: Some of the tablets that have a USB A Type connector offer you to communicate with your USB device using the Android USB Host APIs. And some of the devices that support USB OTG offer you to talk to your device using the Android USB Host API. In Both cases, it is just *some* devices. So before you pick your device, check first if you find any information about the API compatibility.

  I myself have been looking for a site with a list of devices that support the USB Host API. Google knows what devices support it, since there is a “uses-feature” filter in the Android Manifest for the Play Store (Android Market). I did not come across any lookup table/library where I would find such an information

  I hope this clears things up at least a bit

  All the best
  Manuel

  Reply
Mateusz says:

June 9, 2012 at 20:29

Hi Manuel,

Thank You very much for comprehensive answer
Now I understand everything in this subject.
I also found a website with devices database that support ADK Host API.
I hope it will be very helpful for all developers:

http://www.androidzoom.com/android_applications/tools/usb-host-diagnostics_bzrzc.html
http://usbhost.chainfire.eu/

Unfortunately large part of devices seem not to support USB Host API.
There is a big fragmentation in this matter.
That’s a pity …

Best Regards,
Mateusz

Reply
Mateusz says:

June 9, 2012 at 20:41

Manuel,

Sorry to bother You, but I would like to ask You one more question.
If the tablet has only one USB port – can I connect more than one USB device using USB hub ?
For example connect USB printer and USB 3G modem to the tablet, at the same time.

Thank You for Your answer.

Best Regards,
Mateusz

Reply
1. Manuel Di Cerbo says:

  June 9, 2012 at 20:42

  Hey Mateusz!

  Thank you for your comment about the site
  Yes, you can connect to several devices, we tested it.

  All the best
  Manuel

  Reply
Mateusz says:

June 9, 2012 at 22:10

Hi Manuel,

Thank You very much for fast answering, and sharing Your great knowledge.

Best Regards,
Mateusz

Reply
Yurij says:

June 11, 2012 at 00:03

Thanks for sharing your knowladge.
Can you help me to create some serial terminal code? I need to send alfanumerical commannds to arduino UNOv3 and NANO and read alfanumerical responses. One of the controllers has grbl firmware. It respond to commands like: G0 X50 -Y10 Z0, arduino nano will respond to single numbers and letters like 1, 2, c, d, ets. i’ve found some source https://github.com/ksksue/Android-USB-Serial-Monitor-Lite, but it use FTDriver.
thanks!

Reply
Bob Ford says:

June 17, 2012 at 14:49

I would also like to thank you. With your examples I have been able to transfer blocks of data to an Arduino and verify the transfer was correct. However, in going back to the Galaxy Nexus from the Arduino, block transfers are failing. Some of the bytes at the start of the transfer are correct, but the full transfer is not received. This is true whether I use a bulk transfer or an asynchronous transfer, all at 9600. Would you care to comment if this problem might be on the Android side or the Arduino side? Or both? Any suggestions would be appreciated. Thank you!

Reply
1. Manuel Di Cerbo says:

  June 17, 2012 at 18:38
  Hello Bob!

  I noticed that reading from the serial device (Bulk IN transfers) are to be handled a bit differently. Check if the length of the request is > -1, since by default the request will just return -1. If something happens to be in the serial buffer, then the length of the bulk transfer will be != -1 .

  As far as I know, the request length is only available when you use the synchronous usb library. So you need to handle threading etc. your self.

  We are using something like this:
```
	private final Runnable mMainRunnable = new Runnable() {
		public void run() {
			try{
			UsbDeviceConnection conn = mDeviceInformation.getConnection();
			UsbEndpoint ep = (mRequest.getType() == Type.READ ? mDeviceInformation
					.getEndpointIn() : mDeviceInformation.getEndpointOut());
			int len = conn.bulkTransfer(ep, mRequest.getData(), mRequest.getLength(), 0);
			mCallback.onSuccess(mRequest,len);
			}catch(Exception e){
				mCallback.onError(mRequest);
			}
		}
	};
```
  As soon as I have some time to clean up the code, I will post some code of how to deal with I/O in a modular fashion.

  I hope this helps you for the moment

  All the best
  Manuel
  Reply

Thank you, Manuel. I believe my code is functionally identical to yours:

		byte[] xfrBuffer = generateXfrBuffer();
		int xfrOutCount = usbDeviceConnection.bulkTransfer(epOut, xfrBuffer, xfrBuffer.length, 0);
		sb.append("xfr count " + xfrOutCount + ":");

/*
		UsbRequest request = new UsbRequest();
		if (request.initialize(usbDeviceConnection, epIn)) {
			sb.append("usbRequest.initialize ok :");
		} else {
			sb.append("usbRequest.initialize fail :");
		}

		ByteBuffer buffer = ByteBuffer.allocate(SIZEOF_RCV_BUF);

		if (request.queue(buffer, SIZEOF_RCV_BUF)) {
			sb.append("usbRequest.queue ok :");
		} else {
			sb.append("usbRequest.queue fail :");
		}

		request = usbDeviceConnection.requestWait();
		if (request.getEndpoint() == epIn) {
			byte[] data = buffer.array();
			sb.append("have data :");
			for (int i=0; i= 0) {
			sb.append("xfr count " + byteCount + ":");
			if (byteCount > 0)
				for (int i=0; i<byteCount; i++) {
					sb.append("data " + Integer.toHexString(0xff & buffer[i]) + ":");
				}
		} else {
			sb.append("xfr failed :");
		}

Both the asynchronous version, commented out here, and the bulk transfer yield a few correct values of the 8 byte transfer from the Arduino but never the whole buffer. Other forums have pointed out the transfer count is not available for asynchronous transfers, a failing of this version of Android. The Arduino code is:

  buffer = (byte*)malloc(MAX_XFR_CNT);
  xfrCount = getBufferFromSerial(buffer, MAX_XFR_CNT);

  if (xfrCount < 0) {
    rcvStatus = false;
    crc = -1;
  } else {
    crc = computeCRC(buffer, xfrCount);
  }
  if (crc == 0) {
    rcvStatus = true;
    bytesSent = Serial.write(xmtBuffer, 8);
  } else {
    rcvStatus = false;
    bytesSent = 0;
  }

  free (buffer);
}

int getBufferFromSerial(byte *buffer, int sizeofBuffer) {
  boolean startOfMessage = false;
  boolean haveCount = false;
  boolean done = false;
  int xfrCount = -1;
  int count = 0;
  byte *p;
  while (!done) {
    if (Serial.available()) {
      byte inByte = Serial.read();
      if (inByte == 0xfe) {
        startOfMessage = true;
        haveCount = false;
        p = buffer;
        count = 0;                                // reset start of message
      } else if (startOfMessage && !haveCount) {
        xfrCount = inByte & 0xff;                 // transfer count
        if (xfrCount  sizeofBuffer)
          return -1;                              // bad message invalid transfer count
        haveCount = true;
      } else if (startOfMessage && haveCount) {
          *p++ = inByte;
          if (++count == xfrCount) {
            done = true;
          }
      }
    }
  }
  return xfrCount;
}

This sends an 8 byte buffer back to the host after receiving the input buffer and a small delay to verify the transfer was correct. I’m beginning to suspect a timing problem as you have working code but I have not been able to figure it out. Thanks again!

Bob Ford says:

June 23, 2012 at 04:09

Manuel, I may have found a problem with my code. I changed the transfer rate from the original 9600 to 115200, but, more importantly, I increased the priority of the thread that was actually doing the transfers. Previously, I had set it below the priority of the user interface; it is now set to 10. I have not done extensive testing but it does seem to be working now.

Reply
1. Manuel Di Cerbo says:

  June 23, 2012 at 10:55

  Hi Bob!

  Thank you for sharing this! I am a bit astonished that you have to change thread priority, however, in actually makes some sense I will look into this too during the next few days and share my findings. Please keep us posted about your further experiences. Thanks again

  All the best
  Manuel

  Reply
Thibault says:

June 23, 2012 at 13:56

Hi Manuel,

I have a good news : the USB host works fine on my new Galaxy S3.
So I can connect an FTDI 232 driver like on my Galaxy Nexus.
All the best
Thibault

Reply
1. Manuel Di Cerbo says:

  June 23, 2012 at 14:03

  Unexpectedly awesome!
  Thank you for noting!

  All the best
  Manuel

  Reply
2. Adrian says:

  December 2, 2012 at 02:07

  I’d be very curios how did you manage to do that, as I am attempting the same and no luck so far

  I have an Arduino 2009; would that be the source for error? Could you please provide more detail? A step-by-step walk-through would be just wonderful, if possible.

  I am new to Android, have some experience with Arduino, but not much.

  Any advice/code snippets you could provide me would be most helpful

  cheers,
  Adrian

  Reply
roli says:

June 23, 2012 at 14:20

Hi!
I just recently bought an Ainol Novo 7 Paladin tablet (the cheapest one that I could find) and I would really like to use it in a home automation project that I am working on. And I would like to use it in combination with Arduino and a Prolific PL2303 serial controller. I can get your example code to actually detect the controller (so at least part of the USB Host mode is working) but I don’t know how to proceed. I’ve been trying to find a simple easy to use library that would support simple character based communication but I haven’t been able to find anything simmilar. And I am starting to lose hope that I will ever get this thing to work. It would probably be better just to use a raspberry pi as a cheap realy that would send the data via network.

Reply
1. Manuel Di Cerbo says:

  June 23, 2012 at 14:30

  Hi Roli,

  I just looked at the kernel driver of the pl2303 (http://lxr.free-electrons.com/source/drivers/usb/serial/pl2303.c?a=m68knommu).
  I think the problem might be device initialization. Checkout the code in the static int pl2303_startup(struct usb_serial *serial) part, especially the vendor requests in the beginning. I think checking out that code could help you to get started.

  All the best
  Manuel

  Reply
roli says:

June 23, 2012 at 15:39

To be completely honest – it doesn’t help that much. Simply because I have some trouble understanding how this actually works. I’ve never dealt with so low-level code before so it is a bit confusing.

But I just managed to find the slick usb serial library demo and I must say that the example application works great. Problem is that 99$ for such an library is a bit too much for me.

Reply
Yong-eun says:

June 28, 2012 at 01:57

Hi Manuel,
I wasnâ€™t able to use a USB-serial device with the the Galaxy Nexus(OS 4.0.4) and ARDUINO UNO R3.
But Windows 7 PC and ARDUINO UNO R3 Working(LED PWM Control) is OK by hiperterminal.
Could you send me firmware files(usbcontroller.apk, usbserial.hex for ARDUINO UNO R3(Micom ATMEGA16U2)?
I’m so soory my poor english…
Thnaks

Reply
Yong-eun says:

June 28, 2012 at 04:09

Hi Manuel,
It’s my misstake…
wrong pid,vid…
Thanks.

Reply
antaresteleko says:

July 16, 2012 at 03:16

Hi Manuel,

Thank you very much for sharing your knowledge and kindly answering the comments to your post.

I am trying to establish USB communication between an Arduino UNO and my GT-I9100 using the USB HOST API. I have rooted my device, upgraded it to Androdid 4.0.3 and recompiled a custom kernel (this has been a bit of a pain to be honest) with the configuration flags:

CONFIG_USB_OTG=y
# CONFIG_USB_OTG_WHITELIST is not set
# CONFIG_USB_OTG_BLACKLIST_HUB is not set

I have also installed and executed the diagnostic tools for USB Host mode mentioned by Mateusz in is previous comment on June 9, 2012:
http://www.androidzoom.com/android_applications/tools/usb-host-diagnostics_bzrzc.html
and the final veredict for my device has been “OS support YES” although the tool itsefl did not detect any device connected when I plugged my Arduino UNO board to my phone and my application does only detect USB Mass Storage devices while iterating over

HashMap devlist = mUsbManager.getDeviceList();
L.d(myParentActivity, "Number of devices: " + devlist.size());
Iterator deviter = devlist.values().iterator();

Do you have any idea about what can be wrong?
Many thanks in advance. Your help is greatly appreciated since I have been struggling with this for 3 weeks… :-s

Cheers!

Reply
1. Manuel Di Cerbo says:

  July 16, 2012 at 03:25

  Hi there,

  As far as I know, the Samsung developers have created an intermediate library called libusb_host. I think they specifically manipulated the Android framework in a way the USB Host API is blocked. Now, “OS support YES” means that the Kernel supports USB Host, however, it does not mean the Android Host APIs will work.

  Your best bet is to use a custom ROM (Cyanogen for instance) and try with that. Another option would be to use libusb via JNI and give your app root rights, however, then you need to re-implement the entire Host code in C/C++.

  Samsung really sucks in that matter. They pulled that crap on all their devices but the Galaxy Nexus.

  I hope you will be able to work it out somehow.

  All the best
  Manuel

  Reply
Sayan says:

July 17, 2012 at 09:18

Hi,

Thanks for this very useful post. I was trying your solution on a MILAGROW TabTop MGPT04 which supports both USB host mode as well as USB host API.

The problem I am having as even if my SkyeTek RFID reader is connected to the device via OTG cable still the application Log says “Device Not Found”. I have also tried with a couple of external storage devices and thumb drives but the USBManager always seems to return an empty list for connected devices.

Is is like that every device can’t be recognized by the android USBManager?
How and where can I find a list of supported devices by the USB host API?
Could you pls. help?

Reply
Sayan says:

July 17, 2012 at 09:55

Continuing my Question…
I understand from your post that “Most Android tablets will come without the usb-serial driver for your RFID reader “…
But is there a way to know if my RFID reader is compatible with the Android tablet so that it can be accessed by host mode?
Also, could you pls. give a list of common devices like thumb drives etc. with which I can test the code?

Reply
1. Manuel Di Cerbo says:

  July 20, 2012 at 09:30

  Hey Sayan,

  I believe what you are looking for is something like this:

  http://usbhost.chainfire.eu/

  If your devices cannot be accessed via UsbManager then chances are that the OEM just took out the USB API framework part from the Android Framework.

  I hope that helps you a bit

  All the best
  Manuel

  Reply
Kracka Lackin says:

July 21, 2012 at 09:46

Thanks a lot, works like a charm! We modified the Arduino code to run a motor (through a Dagu motor controller) and this enabled us to use hardware PWM on pin 9 with Arduino’s simpler language features:

int incoming=0;

void setup(){
Serial.begin(9600);
pinMode(9,OUTPUT);
pinMode(13,OUTPUT);
digitalWrite(13,HIGH);
analogWrite(9,0);
}

void loop() {
if(Serial.available()>0){
incoming=Serial.read();
analogWrite(9,incoming);
}
}

We also had to modify the Android code to use our particular board’s VID and PID values (we used a Freetronics Eleven, which is otherwise 100% Uno compatible).

Reply
1. Manuel Di Cerbo says:

  July 22, 2012 at 19:33

  Hey Kracha,

  Cool to hear that you were able to put everything to good use! Do you have some more information about your project? It sounds pretty neat

  All the best
  Manuel

  Reply
Pete Houston says:

July 21, 2012 at 11:22

Thanks for nice guide. However, I’m having trouble with your C code to work on Arduino. Could you please port it to Arduino IDE code? I’m not quite familiar with AVR Studio. Thanks.

Reply
1. Manuel Di Cerbo says:

  July 22, 2012 at 19:31

  Hey Pete,

  We are not using Studio, we are using Eclipse. Check out our first Tutorial in the Series to get started.

  All the best
  Manuel

  Reply
Jerry says:

July 22, 2012 at 16:22

I would like to use the CDC ACM driver on my st18i.
Can anyone send the driver to me? Thanks.

Reply
Steven Paul says:

July 22, 2012 at 23:23

Dear Manuel,

first of all many thanks for this great article. May be you can help me to sort out some basic questions about communication between the Android device as host and an attached FTDI USB2Serial device.
I want to connect the Android world to a TinyOS sensor network using a MIB520 USB Gateway wich is using a FT2232C Chip with 2 serial interfaces (one for programming the attached sensor mote and one for serial communication with the mote). I’m using the FTDriver project from here: https://github.com/ksksue
I’m receiving the expected data packages resp. serial messages from the gateway without problems. BUT sending makes me real headache for quite a wile now! I don’t get the MIB520 to accept my sent stuff as a valid message.
Do I have to prepare the data somehow? Do I need any additionaI headers or CRC to make the sent data valid? I tried to send back the received data byte by byte but no luck and debugging between the Out-endpoint and the USB gateway is not possible. May be you have some hints for me for further investigation of my problem?

Many thaks in advance and kind regards,
Steven

Reply
1. Manuel Di Cerbo says:

  July 23, 2012 at 09:01

  Hi Steven!

  I am glad the article helped you to get started.

  The FTDI should not be a problem, you should be able to send data through the bulk OUT endpoint there. What could be a problem though, is that the gateway offers more than one set of Bulk Endpoints.

  Check on your PC with lsusb -v VID:PID what the endpoint numbers exactly are and then try to address them in the code directly.
  In the code of the example we just take the first set of bulk endpoints, which might work for the IN endpoint, but probably the OUT ep is the wrong one.

  Also for easier debugging I recommend using a PC and to run some pyusb script. (try this as starting point http://android.serverbox.ch/wp-content/main.py. Before running it though you need to remove the serial driver kernel module via sudo rmmod ftdi_sio (if you are using a linux host machine).

  All the best
  Manuel

  Reply
Sayan says:

July 25, 2012 at 08:06

Hi Manuel,

Thanks for your reply.
Just to inform you, I had downloaded USBHostController tool from http://www.androidzoom.com/android_applications/tools/usb-host-controller_bxquw.html?nav=related

When I connect my USB devices(mouse/key-board/RFID reader) to the android tablet they are getting properly recognized buy the USBHostController tool but somehow from my own android application the devices are not getting recognized by the USBManagaer, it always returns me an empty list of devices attached.

I have tried with your code as well as I have developed a very simple test program to check for and list attached USB devices but that is also not working.
Pls. see below the code snippet and the Manifest file for my project :

Code Snippet:
===================================================
UsbManager usbManager = (UsbManager)getSystemService(Context.USB_SERVICE);
HashMap deviceList = usbManager.getDeviceList();
Iterator deviceIterator = deviceList.values().iterator();

Toast.makeText(this.getApplicationContext(), “Device Count : ” + deviceList.size() + “”, Toast.LENGTH_SHORT).show();

while (deviceIterator.hasNext()) {
found = true;
UsbDevice usbDevice = deviceIterator.next();
Toast.makeText(this.getApplicationContext(), “Product ID : ” + usbDevice.getProductId() + “”, Toast.LENGTH_SHORT).show();
}

Manifet File :
====================================================

I am struggling with this for a very long time.
Can somebody pls. help me out regarding this? Thanks a lot in advance…

Reply
1. Manuel Di Cerbo says:

  July 25, 2012 at 11:34

  Hey Sayan,

  I just looked at the tool and it states

  “The application does not use the USB Host API”

  So your devices show up and are probably read out via some kind of lsusb command.

  What that means is your device simply does not support the USB Host API. So the devices don’t show up in the UsbManager since the framework part is probably just stubbed out.

  What device are you using?

  All the best
  Manuel

  Reply
Sayan says:

July 25, 2012 at 08:15

Somehow the Manifest file did not appear in my above post.
Here is the Manifest file for my project.
(I have removed the tags otherwise it was not getting posted)
====================================================
manifest xmlns:android=”http://schemas.android.com/apk/res/android”
package=”com.test.usb.connection”
android:versionCode=”1″
android:versionName=”1.0″

uses-sdk
android:minSdkVersion=”15″
android:targetSdkVersion=”15″

uses-feature android:name=”android.hardware.usb.host”

application
android:icon=”@drawable/ic_launcher”
android:label=”@string/app_name”
android:theme=”@style/AppTheme”

activity
android:name=”.MainActivity”
android:label=”@string/title_activity_main”

intent-filter
action android:name=”android.intent.action.MAIN”

category android:name=”android.intent.category.LAUNCHER”
intent-filter

activity
application

manifest

Reply
Sayan says:

July 25, 2012 at 11:55

Hi Manuel,

Thanks for your prompt reply.
The devices I have used so far is a MILAGROW TABTOP MGPT04 (running ICS 4.0.3) and the other one is a Tazpad also running ICS.
Both these devices claim to support Android API-15. So the code shoul;d work fine on these tablets right?
Also, I have a question if as per your comment the USB Host API was stubbed out of these devices then how could my code compiled and runned without error on these?
Could you put some light to this?

Reply
1. Manuel Di Cerbo says:

  July 25, 2012 at 12:32

  Hey Sayan,

  In short: the OEM of your device did not do the implementation of the Android Framework properly. The UsbManager is accessed via SDK, though implemented by the Android Framework. My guess is that some OEMs just lack the knowledge, manpower or the motivation to do the implementation of the Android Framework the right way.

  Your code runs fine, but the Framework just gives you an empty list of USB devices back.

  I hope that shed some light on the problem.

  All the best
  Manuel

  Reply
Sayan says:

July 25, 2012 at 14:12

Hi Manuel,

Thanks for the clarification.
I will try to check with the device vendor regarding this.

Meanwhile I would liek to know is there any other way to check if the Android framework has been properly implemented on the device to support USB host API or not?
Also, in case it is not properly implemented by the OEM is there any work-around to access USB devices programmatically?

Appreciate your help.
Regards,
Sayan

Reply
Kracka Lackin says:

July 28, 2012 at 03:52

Hey Manuel,

We plan on using this in a quadcopter control system, where the Nexus sensors are used to stabilise the craft. We needed a way to get the output of the phone’s orientation calculations to control the motors, so your Android-to-Arduino USB code has come in very handy for this. Now we just need to write the control code :O

Thanks again!

Reply
1. Manuel Di Cerbo says:

  July 28, 2012 at 17:21

  Hello Kracka,

  Thank you for your comment, we are happy you found help in the articles
  Are you using a galaxy nexus? If so, keep in mind, that you cannot power the phone and use OTG at the same time, and power will be drawn more quickly than without USB attached.

  Your project sounds really interesting and I hope it will be a success

  All the best
  Manuel

  Reply
John says:

July 28, 2012 at 16:07

Hi

First, thank you for writing such informative / clear articles.
I did have a few question though.

I’m trying to let my arduino communicate with my android.
I have a desire HD, that apprarently doesn’t support USB host mode. I’m running a custom rom 4.0 so I should have all the OS requirements fixed.
The arduino won’t be powered through usb as host mode isn’t working, but can I still use the USB api and use your code ?
And let it be powered by android if the phone has host mode enabled ?
Or should I use the ADK ? But I really don’t like it as they don’t have the host mode.
And if I power my arduino from something else, do I still need the usb otg cable ?

Sorry for all the questions, but I’m a bit stuck on how to set up my development.
Thank you very much.

Reply
1. Manuel Di Cerbo says:

  July 28, 2012 at 17:18

  Hello John,

  I am glad you like the articles
  In order for USB OTG to work, you need to configure the kernel properly. For that you need to recompile your kernel and flash it onto your phone. If you run a custom ROM I am almost certain, that you will find a howto for kernel config.
  Then, when OTG is activated on the kernel side, you should be able to attach a device via OTG converter and see it powered. If it is not powered, then you can still use a powered hub (this is only a guess though).
  Also if you are running 4.0, you should be able to attach a mouse/keyboard and use it in the system.

  If that does not work, then you are out of luck with USB Host and you would have to use the ADK for your project.

  I hope that points you into the right direction

  All the best
  Manuel

  Reply
Pingback: Android usb host api åƒè€ƒè³‡æ–™ | Y12 Studio
Pingback: Control Arduino via Android without rooting « freetronicsblog
Luca says:

August 8, 2012 at 10:52

Hi, thank you very much for this post.

I’ve got a question?
The Arduino firmware (led_pwc.c) is written for AVR compiler?
Is it possible doing the same thing in the Arduino IDE?

Kind regards

Reply
Tek Stin says:

August 10, 2012 at 21:55

Hi Manuel,

Thanks for putting together this very informative write-up.

I have a question on a project I am about to undertake as follows:

I am planning to connect a Google Samsung Galaxy Nexus HSPA+ phone running JellyBean in USB-Host mode, via OTG cable to a peripheral board in USB-Slave mode. This Peripheral board has a FTDI USB/UART chip.

Will your approach here work in this scenario to communicate between the phone and the peripheral?. Or do I need to load the FTDI USB/UART chip driver into the Samsung Galaxy Nexus.

Thanks!,
Tek

Reply
1. Manuel Di Cerbo says:

  August 12, 2012 at 14:09

  Hi Tek!

  I am glad the posts helped you

  This will absolutely work, I have tested it myself. You are good to go

  Note however, the GN cannot be charged at the same time as being in USB Host mode. I have tried it over the POGO Pins without any success

  All the best
  Manuel

  Reply
Tek Stin says:

August 14, 2012 at 04:22

Hi Manuel,

Thanks for the quick response!. I have another follow-on question:

Can the Galaxy Nexus in USB Host Mode receive data from the Peripheral(with FTDI (USB/UART) over USB also?. The reason I ask is that the example seems to emphasis that the Galaxy Nexus in USB Host mode can send data to the peripheral.

Would you be available for a short consulting work to advice our developers on how to make this work?. If so, please let me know, we greatly appreciate it.

Thanks,
Tek

Reply
Sayan says:

August 14, 2012 at 09:56

Hi Manuel,

I have a RFID reader connected and trying to communicate with it from my android app. I can only find one Interface on the reader having two INTERRUPT Endpoints(IN and OUT).
From my understanding to communicate with INTERRUPT endpoints I’ll have to use asynchronous data transfer methods using request.queue() and conn.requestWait() methods but somehow I am not able to achieve things.

I need to sent this command : 02 00 0A 00 20 12 01 00 01 00 04 DA E9
to the reader and get response back. I was trying to do something like this :

conn.bulkTransfer(epOut, new byte[] {
(byte)0x02, (byte)0x00, (byte)0x0A, (byte)0x00, (byte)0x20, (byte)0x12, (byte)0x01,
(byte)0x00, (byte)0x01, (byte)0x00, (byte)0x04, (byte)0xDA, (byte)0xE9}, 13, 1000);
ByteBuffer buffer = ByteBuffer.allocate(128);
buffer.order(ByteOrder.LITTLE_ENDIAN);
UsbRequest request = new UsbRequest();
request.initialize(conn, epIn);
request.queue(buffer, epIn.getMaxPacketSize());

if (conn.requestWait() == request) {
byte[] data = buffer.array();
if(data != null) {
Toast.makeText(sActivityContext.getApplicationContext(), “Data Available”, Toast.LENGTH_SHORT).show();
Toast.makeText(sActivityContext.getApplicationContext(),
data.toString(), Toast.LENGTH_LONG).show();
}
}

But it was not retrurning proper response. Could you pls. help?

Regards,
Sayan

Reply
1. Manuel Di Cerbo says:

  August 14, 2012 at 10:35

  Hey Sayan,

  I see that you are doing a Bulk OUT transfer in your code. Should that not be a Interrupt OUT transfer? You should also be able to queue and OUT transfer via async API calls.
  The second part of the code seems correct to me. I am doing it very similar for the OsciPrime Oscilloscope, though it’s Bulk Endpoints there.

  All the best
  Manuel

  Reply
Sayan says:

August 14, 2012 at 13:55

Hi Manuel,

I have tried out this also :
—————————————————————————————————–

byte[] command = { (byte)0x02, (byte)0x00, (byte)0x0A, (byte)0x00, (byte)0x20, (byte)0x12, (byte)0x01,
(byte)0x00, (byte)0x01, (byte)0x00, (byte)0x04, (byte)0xDA, (byte)0xE9};
ByteBuffer epOutBuffer = ByteBuffer.wrap(command);
UsbRequest request = new UsbRequest();
request.initialize(conn, epOut);
request.queue(epOutBuffer, command.length);

if (conn.requestWait() == request) {
byte[] data = epOutBuffer.array();
if(data != null) {
Toast.makeText(sActivityContext.getApplicationContext(), â€œData Availableâ€, Toast.LENGTH_SHORT).show();
Toast.makeText(sActivityContext.getApplicationContext(),
data.toString(), Toast.LENGTH_LONG).show();
}
}

But this also seems to not working properly.
Could you give me an working example of send/receive response using Interrupt endpoints please?

Regards,
Sayan

Reply
Pingback: connect two usb?
Allen says:

August 24, 2012 at 07:07

Hi Manuel,
i have tried developing a sample app to detect usb. but i was not success.

My code will look like this.

____________________________________________________________________
public class MainActivity extends Activity {

UsbManager manager;
HashMap deviceList;
Button scanButton;
UsbDevice device;

@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

scanButton = (Button)this.findViewById(R.id.button1);
scanButton.setOnClickListener(new OnClickListener ()
{
public void onClick(View v)
{
checkForDevices ();
}
});
}

@Override
public void onResume ()
{
super.onResume();
checkForDevices ();
}

@Override
public boolean onCreateOptionsMenu(Menu menu)
{
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}

protected void checkForDevices ()
{
manager = (UsbManager) getSystemService(Context.USB_SERVICE);

deviceList = manager.getDeviceList();
device = deviceList.get(“deviceName”);
//Collection devices = deviceList.values();

if (device != null)
Toast.makeText(this, “Device Found”, Toast.LENGTH_LONG).show();
else
Toast.makeText(this, “Device NOT Found”, Toast.LENGTH_LONG).show();
}
}

_________________________________________________________________

When i run this app, i always get the toast as “Device NOT Found”.
Since i’m new to android, i was not able to fix this problem for the past 3 days.
Can you please help me out.

Reply
DSD says:

August 27, 2012 at 05:29

Hi, I’m a newbie to Android environment …Would be grateful or some help / guidance. I want to run PrintRun? /Pronterface on an Android Tablet with a Host USB Port.

Pronterface is a 3D printer host software written in Python and available at https://github.com/kliment/Printrun.

Pronterface.py is the main executive file.

This Host has to link with Arduino Mega 2560 with Marlin Firmware.

Marlin is available at https://github.com/ErikZalm/Marlin.

Reply
Jack says:

August 29, 2012 at 03:02

Hi Manuel,
Thanks for the code. Can you explain me the code
‘conn.controlTransfer(0x21, 34, 0, 0, null, 0, 0);
conn.controlTransfer(0x21, 32, 0, 0, new byte[] { (byte) 0x80,0x25, 0x00, 0x00, 0x00, 0x00, 0x08 }, 7, 0);’
Can I set other parameters?
Thanks again.

Reply
Jignesh says:

September 5, 2012 at 09:08

Hi Andreas Rudolf,

I am using Uno rev-3 having â€œVID:PID = 2341:0043â€³.
On linux I am able to communicate with board (verified with lsusb), but when I connect with Android Tab 3.1 (with OTG support), could not get detect device using app, even mUsbManager.getDeviceList() not return any device entry having VID = 2341.

Note: Uno rev-3 using ATmega16u2 as USB-Serial converter (on chip driver).
Do I need to add driver in Android tab for that, if yes can you provide steps for that.

Thanks,
Jignesh

Reply
1. Andreas Rudolf says:

  September 5, 2012 at 14:21

  Hi Jignesh

  A driver is not required for communicating this way.

  We are using an Arduino Uno Rev 3 with ATMega16u2, VID=0x2341, ~~PID=0x0001~~ as well. EDIT: VID=0x2341, PID=0x0043
  Have you installed the above Android app UsbController.tar.gz? The VID/PID values are already set at the top in UsbControllerActivity.java and should be changed accordingly (Right now it is PID=0x0001). Have you also installed the above firmware on the Arduino?

  You said getDeviceList() does not return any device with VID=2341. Note that the VID and PID values returned by lsusb are in hexadecimal format. That is, VID is 0x2341 or 9025 as a decimal value. The returned HashMap by mUsbManager.getDeviceList() will be empty, if “no devices are attached, or if USB host mode is inactive or unsupported”. Can you check if the HashMap is empty? If so, maybe USB Host Mode API is unsupported on your particular tablet, or there is a problem with the OTG adapter. Either way, good luck

  Best Regards
  Andreas

  Reply
Jignesh says:

September 5, 2012 at 15:52

Thanks Andreas for quick response,

I am using Samsung Galaxy Tablet-10.1. It having OTG support and works fine with mass storage device (able to see entry in HashMap retuned by mUsbManager.getDeviceList() );

But not able to work with other usb devices.
As per “http://stackoverflow.com/a/7587158/1635169” ; it look like Samsung kernel bug or samsung limiting features.

If I get chance to test it with another cheapest tab; I will update you, but it will takes some time.

I am appreciating your help, thanks again.
Jignesh

Reply
jumpjack says:

September 13, 2012 at 10:05

I can’t compile android apps, is the app on the market?

Reply
mike w says:

September 17, 2012 at 21:39

Hope you don’t mind me stopping by to plug my library for Android USB Serial driver support, which supports both FTDI chipsets as well as CDC-ACM, abstracted under a simplified interface. It’s opensource, and contributions would be welcome: http://code.google.com/p/usb-serial-for-android/

Reply
Jignesh says:

October 15, 2012 at 10:02

Hi Mike,

I am able to install USBSeriallib and USBSerialExample on Samsung Galaxy Tablet-10.1 (Android OS – 3.1) and connected FTDI usb to UART cable with it in loop back connection.
But in application it says “No Serial Device found”,
I thing it should detect FTDI usb to UART device.
As per â€œhttp://stackoverflow.com/a/7587158/1635169â€³ ; it look like Samsung kernel not supporting it.
If any body tried same way with other or Samsung Galaxy Tablet-10.1, please share your results.

Regards,
Jignesh

Reply
1. Manuel Di Cerbo says:

  October 16, 2012 at 20:21

  Jignesh,

  The P7510 / P7500 do not support the Android USB Host API.

  Cheers
  Manuel

  Reply
Tariq says:

October 16, 2012 at 18:45

Hello Manuel,

first of all thank you for the article,
and sorry i am a bit late here as this post seems to be older.

I am new to electronics or i would say a learner, but i have very good experience of software development.

I have read a lot about the android, arduino, ADK, also the alternatives like IOIO and microbridge.

the objective is to create a USB device which can power my android device (so that i can be charged while connected) and communicate between device and android, the communication would be usual like providing the values from sensor to android and then android application will decide what actions to perform and communicate back to the device to trigger the other stuff connected to it.

my question is what combination should i use for the above requirement?
android + ADK
android + aurdino UNO (i already have one)
android + IOIO

my Android is HTC One X with 4.0.3 (Original)

any help would be appreciated, also please consider that i am a learner so it would be good if you can provide some good references as well.

Thank you very much

Tariq

Reply
1. Manuel Di Cerbo says:

  October 16, 2012 at 20:24

  Hello Tariq,

  Thank you very much.

  If you need power, then you should go with the ADK. If you need a matching hardware I would suggest you go with the Mega ADK http://arduino.cc/en/Main/ArduinoBoardADK.

  It is pretty popular and has an active community. Arduino for the win

  All the best
  Manuel

  Reply
Tariq says:

October 17, 2012 at 15:47

Hi Manuel,

Thank you for the quick response, I am working on a prototype and i m sorry i can not share what the idea is but just wondering that while going for production we will have to embed this ADK in our devices, wont they become so expensive? would that be a good idea to embed the complete ADK in each device ? is there any cheap solution ?

Regards

Tariq

Reply
Tariq says:

October 17, 2012 at 15:57

Sorry for the second post

just trying to be more specific.
i want to develop a dock so when the phone or tab is connected to it, an application will be launched on the tab automatically and display the information coming from sensors and let user chose the options. i.e. shutdown the machine if it is over heated. and the tab will keep on charging while connected.

Reply
1. Manuel Di Cerbo says:

  October 18, 2012 at 01:07

  Hello Tariq,

  The ADK really seems to be the best option for you.
  For a prototype you should look into the Arduino Mega ADK. I am sure you will find some example code for firmware as well as for the Android side software. You can refer to our ADK Post “Turn your Linux Computer into a huge accessory” to get started.

  You would then attach your sensors to the ADK and use analogue inputs to measure them.

  I hope this gets you started.

  For production you would have to include the micro controller into your own hardware design. I don’t think this will be a lot more expensive than to go with a USB device only controller.

  All the best
  Manuel

  Reply
Tariq says:

October 18, 2012 at 13:31

Hi Manuel,

Thank you for your guidance,

I did some more research and found the following:

IOIO can also charge your phone/tab
https://github.com/ytai/ioio/wiki/Power-Supply

IOIO now supports Open Accessory Protocol which means you can now connect your Android to IOIO in Host/Accessory mode as you would do with ADK. the only difference is that you will need reference the IOIOLibAccessory library and the ADK library as well IOIOLibAccessory creates a wrapper around ADK library and use its native functions to communicate with android
https://github.com/ytai/ioio/wiki/IOIO-Over-OpenAccessory

both of these articles are written by ytai the inventor of IOIO

the best part about IOIO is that you can control the pins right from your android application and you don’t need to write the separate code for microcontroller and android.

hope this may help some one

thank you once again

Tariq

Reply
stan says:

October 22, 2012 at 20:11

Hi,
I am using Arduino IDE to compile the firmware code and it cannot compile. Says the error “PB5” is not declared in the scope. Can you help me out?

Thanks

Reply
1. Andreas Rudolf says:

  October 31, 2012 at 13:11

  Hi Stan

  PB5 is simply defined as 5. Thus, instead of “#define LED PB5”, you can simply write “#define LED 5” and everything should be ok.
  Kind of strange that it is not defined when compiling with the Arduino IDE though.

  Best Regards
  Andreas

  Reply
Andres says:

November 3, 2012 at 02:10

I just tried with a Samsung galaxy ii(T989) wit Cyanogenmod 10 and works nicelly. I had to make a few changes to make it work without problems in the Arduino IDE. I deleted all the serial port stuff and replaced with the ‘Serial’ class from Arduino.

Reply
JoÃ£o Azevedo says:

November 3, 2012 at 20:46

I tried to use this tutorial with my arduino duemilanove and my google nexus s with 4.1.2 version, but I don’t have same result. When I connect the phone with the arduino, it doesn’t power on, and I don’t know why.
When I connect the arduino with my MAC it is recognized instantly.
Am I doing anything wrong or I have to do anything more than this tutorial? I just use the UsbController.tar.gz* file as apk and load the led_pwm.c on arduino.

Reply
1. Manuel Di Cerbo says:

  November 3, 2012 at 20:53

  Hello Joao,

  the nexus s does not feature usb otg. You cannot communicate with it using USB Host, I am afraid.

  All the best
  Manuel

  Reply
JoÃ£o Azevedo says:

November 3, 2012 at 21:03

Hi,

Thanks for the fast response. I think that this is possible if I change the kernel. I will search about it.

Thanks

Reply
Shreyas says:

November 8, 2012 at 07:24

Hi Manuel,
Thanks for such a detailed post. It helped alot. I have some issues, I am using a Beagleboard Xm and pluggin in any USB device. Using above application I expect to see any device be listed when I try to access it through an application. Unfortunately not a single device can be found. Under Androidx86 and various real Android tablets, everything works fine with the exact same code, but the beagleboard never let me access USB devices. I used the ICS prebuilts offered by TI.
I am using UsbManager class in order to enumerate the android devices connected to the same but I am unable to get the devices list. I checked logs, its UsbDevice.getDeviceList returns empty list. Is there anything i need to change in the init.rc or elsewhere in order to get the device list?

however, my beagleboardXM works fine with keyboard and mouse connected thro’ USB.
Do you have any idea what could be possible reason
I’m trying this for long now! but no progress.:(

Reply
1. Manuel Di Cerbo says:

  November 8, 2012 at 13:28

  Hello Shreyas,

  I am sorry that it seems not to work with the Beagleboard XM. Does the board get powered when you connect it?

  If you get an empty list of devices back then usually it means either the board is not enumerated, or the framework part of the UsbManager has not been implemented correctly. What you could do is to try the “rowboat” build (http://code.google.com/p/rowboat/) and to check if the issue there persists as well.

  One more thing I could imagine (though rather improbable) is that the device port /dev/ttyACM0 is busy and thus is not shown in the list of enumerated devices. However, we have devices with the ACM driver here as well and they seem to work.

  Please keep me posted on your development, since we always get requests in the comments about devices not enumerating (empty list issue).

  On a separate note, with the Linaro build on the Pandaboard we have been able to communicate.

  All the best
  Manuel

  Reply
Tim Specht says:

November 8, 2012 at 22:28

Hey there,

thanks for this awesome write-up! I managed to install the firmware just fine on my Arduino Uno, changed the PID to …43 in the app and also got it installed on my Odys Neo x8 which should support USB hosting and is connected to the board with the OTG adapter. The board gets powered properly but unfortunately, the led is being very low-dimmed and moving the slider doesnt change anything, also, the enumerate-button doesnt do anything. Any hints?

Best
tim

Reply
1. Manuel Di Cerbo says:

  November 8, 2012 at 22:34
  Hello Tim!

  Coincidentally I know what the problem is!
  You need to activate Brownout detection in the fuse settings of the Arduino board.
  We had that too, but only sometimes.

  This command should fix it
```
sudo avrdude -p m2560 -c usbtiny -U lfuse:w:0xff:m -U hfuse:w:0x99:m -U efuse:w:0xfc:m
```
  We did this for the mega, however you need to adjust the partno (-p) for the uno and I cannot find that one. Hope this gets you started though.

  All the best
  Manuel
  Reply
  1. emilio says:

    November 29, 2012 at 09:03

    Hello,
    I have the same problem…
    and I can not solve..
    let me know if you solve.
    luck
    Emilio

    Reply
  2. Manuel Di Cerbo says:

    November 29, 2012 at 16:54

    You need an ICSP Programmer to change the fuses on the UNO. We used an “USBtinyISP” to update the fuses. I think you will find some on ebay.

    All the best
    Manuel

    Reply
Tim Specht says:

November 8, 2012 at 22:36

Wow, awesome speed you got there!
Can you tell me where to enter it? I’m running Mac OS X (could access Windows too…) and fairly new to Arduino

Reply
1. Manuel Di Cerbo says:

  November 8, 2012 at 22:58
  Hello Tim,

  I did this in a terminal.. the command should look something like this
```
avrdude -pm328p -carduino -P/dev/ttyACM0 -b115200 -U hfuse:w:0x99:m -U efuse:w:0xfc:m
```
  However, I am getting an error if I try. Maybe you need an ISP programmer.

  For a quick fix try to connect a powered USB Hub to your Arduino.
  Reply
Tim Specht says:

November 8, 2012 at 23:04

Now all I get is this:

Reading | ################################################## | 100% 0.00s

avrdude: verifying …
avrdude: verification error, first mismatch at byte 0x0000
0x99 != 0x00
avrdude: verification error; content mismatch

avrdude: safemode: hfuse changed! Was 99, and is now 0
Would you like this fuse to be changed back? [y/n] n
avrdude: safemode: Fuses OK
avrdude: stk500_recv(): programmer is not responding

Reply
1. Manuel Di Cerbo says:

  November 8, 2012 at 23:06

  Hello Tim,

  I get something similar. I think you can’t flash the fuses over the serial programmer but you probably would have to use an actual ISP programmer :(. I can’t fix it either

  Have you tried to use a powered hub? This should prevent the board from having brownout problems.

  Reply
Tim Specht says:

November 8, 2012 at 23:08

But how can I connect the Arduino to an USB powered hub (which I got already) and to the tablet at the same time? :/

Reply
1. Manuel Di Cerbo says:

  November 8, 2012 at 23:23

  Hi Tim,

  I checked again and I did not find any solution… it seems that the fuses are somehow locked … I bet it would work with an ISP.

  Regarding the hub: I mean a hub that is powered with a 5V power adapter.

  All the best
  Manuel

  Reply
Tim Specht says:

November 9, 2012 at 00:20

Hey there,

I looked into the problem a little more and it seems, that the tablet isn’t finding any USB-devices since I build in some debugging logs into an extra TextView into the UI which isnt displayed…Any suggestions?

Reply
Pingback: I’m now thinking of using android input for touch screen control « Joe York, Physical Computing Project Blog
Kozlov says:

November 18, 2012 at 19:22

Hello
Nice and helpful article.
can you answer my below doubts please?
2.How do i know the board (arduino or any other ) i have works as USB host or device?
3.Is there any other alternative way to communicate to a external USB host with out using ADk(or Open accessory protocol) from my android device.Suppose I have host device connected to my android which gives me room temp every 5 min.How will i talk to this device from my android device with out using ADK/AOAP.

Reply
1. Manuel Di Cerbo says:

  November 19, 2012 at 15:39

  Hello Kozlov,

  Thank you so much

  1. The Arduino Due for instance enables you to connect as both Host or Device. You should check that one out.
  2. If you have an external USB Host then the preferred way is to communicate using the ADK protocol. You could of course write your own implementation (turn to the source code of the Android ADB Daemon for that), however that will require a lot more effort and know-how than use the current ADK API.

  Hope that helps you further

  All the best
  Manuel

  Reply
Willem says:

November 22, 2012 at 01:50

Hi all,

First of all, thank you Manuel for these helpful articles and for providing a platform for like minded people.

I’m working on a home automation project with a z-wave USB stick. I’ve bought an Odroid-X development board which is pretty awesome. I want this board to be the main controller. It therefore needs to communicate with the USB stick. Inside the stick is a prolific 2303 chip with 3 endpoints. 1 bulk in, 1 bulk out and 1 interrupt. Is there anyone over here who got communications with this chip working. If not, does anyone want to collaborate on implementing the soft driver for the chip?

Thanks very much,

Willem

Reply
1. Manuel Di Cerbo says:

  November 23, 2012 at 01:31

  Hello Willem!

  Thank you so much

  I bet you can get the profilic to work. What you need to do is to find out what setup commands it uses. I think there is even a usb serial library that has that code snippet inside.
  If not, then you need to look through the kernel driver, there it is for sure.

  I will have a look into the matter as well.

  All the best
  Manuel

  Reply
Jayanth Acharya says:

November 23, 2012 at 12:29

Does this method work only with Arduino UNO, or with the older Arduino’s (Duemillanove and the zillion clones), which use the FTDI USB/serial(TTL) converter ? I guess, one would have to modify the user-mode soft-driver logic to fir the FTDI serial protocol, right ?

Reply
1. Manuel Di Cerbo says:

  November 27, 2012 at 19:34
  Hello Jayanth,

  This works with the FTDI as well, though with other setup transfers.
```
conn.controlTransfer(0x40, 0, 0, 0, null, 0, 0);// reset
conn.controlTransfer(0x40, 0, 1, 0, null, 0, 0);// clear Rx
conn.controlTransfer(0x40, 0, 2, 0, null, 0, 0);// clear Tx
conn.controlTransfer(0x40, 0x03, 0x4138, 0, null, 0, 0);
```
  Reply
emilio says:

November 29, 2012 at 09:50

hello manuel,
I think your project is very interesting and I congratulate you for this.
I would like to know what exactly is the board arduino you used in the project.
sorry for my English, I do not speak very well…

Thanks,

Emilio

Reply
1. Manuel Di Cerbo says:

  November 29, 2012 at 16:52

  Hello Emilio,

  We used an Arduino Uno Rev. 3 Board.

  Reply
Willem says:

December 10, 2012 at 21:30

Hey,

I’ve found this project http://code.google.com/p/indiserver/
It has a basic PL2303 soft driver. But only for a specific product and vendor ID.
These are not the right ID’s for me, so I’ll extend this driver with the code for my device.
If it works, I’ll send the author of this indiserver project a message and post the results here as well :).

Regards,
Willem

Reply
1. Willem says:

  December 11, 2012 at 21:14

  Never mind, the code should work…
  Have not gotten it to work myself though.

  Hope this helps others!

  Regards,
  Willem

  Reply
2. Willem says:

  December 18, 2012 at 17:31

  Hi all,

  As of last sunday I’ve managed to get the right setup for my device.
  I want to confirm that the above mentioned driver from the INDIServer project is indeed working great.
  Now I can finally start with the implementation of the rest of my z-wave server :).

  Regards,
  Willem

  Reply
  1. Manuel Di Cerbo says:

    December 19, 2012 at 13:33

    Hi Willem!

    Thanks for sharing!

    All the best
    Manuel

    Reply
Wood Drawer says:

December 21, 2012 at 17:54

Impossible! I can’t get working my ZeniThink C91. I can’t understand it. Everything seems well but…
I use a Huawei 3G modem with this tablet with no problems at all. It means that it works as USB host properly.
I have checked the VID and PID codes of my Arduino UNO board. I have tried with an Arduino UNO rev.1 and rev.2.
I don’t know what more to try… this drives me mad!
Please, could anyone with a C91 whether got this tablet working this issue?
Thanks.

Reply
1. Manuel Di Cerbo says:

  December 21, 2012 at 18:17

  Hello,

  The guide is for a rev 3 board.

  Reply
  1. Wood Drawer says:

    December 21, 2012 at 18:44

    However, the Arduino in the pictures is a rev.2 board.

    Reply
Baco says:

December 27, 2012 at 21:24

I had some problems with my low cost START701 tablet (Android 4.0.3) until I found this article that describes how to enable USB host.

I implemented it and everything went smooth, even on my Arduino Duemlanove.
Thanks Manuel for your valuable helo,

Reply
ahmed says:

January 5, 2013 at 16:21

Hello Mr. Manuel i have a tablet archos 7htv2 with a costume firmware Froyo inside and it supports OTG & USB host , and when i plug my Arduino Mega a new ttyACM0 device shown in Dmesg,
does it mean that this tutorial will help me to communicate with arduino even if it’s not honeycomb ? (
thank you for advance

Reply
Dylan Hyslop says:

January 28, 2013 at 23:24

Thanks for the post.
Is it possible that this could work with a prolific usb-serial device? Also how would uart fit into this?
Thanks

Reply
1. Manuel Di Cerbo says:

  February 1, 2013 at 09:31

  Hi Dylan,

  it is possible, yet you will need to adjust the control transfers and possibly the polling mechanism. You would probably start by checking the kernel driver for those usb transfers or sniff them from your host machine (you could even use wireshark).

  All the best
  Manuel

  Reply
laurabacu says:

January 30, 2013 at 20:23

hello, i’ve a question, from where do you extract the constants or parameters for the function controltranfer(…..)

i’m using this function but in other interface (android with FTDI) and i have some doubts there,
thanks!!
Laura

Reply
1. Manuel Di Cerbo says:

  February 1, 2013 at 09:27

  Hi Laura,

  the parameters are extracted from the libftdi api (which is open source) and for the rev 3 arduino from the source of the firmware (lufa) running on the 16u2.

  All the best
  Manuel

  Reply
Nikola says:

February 1, 2013 at 02:34

Hello,
I have a problem with the connection.
I have ZTE Grand X In phone, and Arduino MEGA 2560 (not with FTDI chip) connected by USB OTG enabled cable.
The phone powers the Arduino MEGA board, but the board is reading nothing from the serial port.
I tried with Serial.available() and still nothing.
Any suggestions for this problem?

I adjusted the VID and PID parameters as correctly as in device manager.
I will really appreciate your help.
Thanks in advance
Nikola

Reply
1. Manuel Di Cerbo says:

  February 1, 2013 at 09:24

  Hi Nikola,

  Are you able to grant your application permission for your Arduino? Is it listed in your device list via UsbManager?

  All the best
  Manuel

  Reply
Nikola says:

February 1, 2013 at 15:22

For the purpose of troubleshooting I add this get method to your UsbController class:
public HashMap devic()
{
return mUsbManager.getDeviceList();
}

And added TextView to your main activity so I can read the listed devices on the phone, and it gets updated in the slide event listener.

((SeekBar)(findViewById(R.id.seekBar1))).setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {
@Override
public void onStopTrackingTouch(SeekBar seekBar) {
}
@Override
public void onStartTrackingTouch(SeekBar seekBar) {
}

@Override
public void onProgressChanged(SeekBar seekBar, int progress,
boolean fromUser) {
if(fromUser){
if(sUsbController != null){
sUsbController.send((byte)(progress&0xFF));

//Here I update the text view with the listed devices.

x.setText(“Devices: “+ sUsbController.devic().toString());

}
}
}
});

I get empty set {} from the hush table toString() method.

What do you think does it mean?

Reply
1. Manuel Di Cerbo says:

  February 1, 2013 at 15:47

  Hi Nikola,

  This means your device does not support the Android USB api I am afraid

  All the best
  Manuel

  Reply
Nikola says:

February 1, 2013 at 15:24

My board is Arduino mega 2560 Rev2, and PID is 0x0010 if that means anything

Reply
Nikola says:

February 1, 2013 at 19:59

But i tried with usb Mouse and Keyboard and it works.
I can control the phone with them.

You still think that Usb API is not supported?

Can i fix it by rooting the phone, because my phone is not rooted?

Reply
1. Manuel Di Cerbo says:

  February 1, 2013 at 20:29

  Your hardware suppprts Usb Host, but Android is missing a crucial part of the API on you phone. Cyanogenmod will enable you to use it though almost for certain.

  Reply
Nikola says:

February 2, 2013 at 00:42

That will be my last try.
The app called USB DEVICE INFO from google play.
This application uses two different methods to collect information:

1. Android mode use the native android USB API.
2. Linux mode will parse /sys/bus/usb/devices/

The second Linux mode enumerates my device and its PID and VID and recognises the MEGA, but the first Android mode doesn’t.

Anyways you had been a great help for me. I am engineering student and this will be a part of my final project.
Thank you very much, and keep up the good work.

Reply
1. Manuel Di Cerbo says:

  February 2, 2013 at 14:09
  Hey Nikola,

  Indeed some OEMs tend to include the Kernel driver for OTG and USB Host, yet they opt to go for a build without the file ./native/data/etc/android.hardware.usb.host.xml which contents are

  <?xml version="1.0" encoding="utf-8"?>
  <permissions>
  <feature name="android.hardware.usb.host" />
  </permissions>

  The file has to be in
```
"system/etc/permissions"
```
  for it to “activate” USB Host.
  So if you are keen on trying, you can root your device, use “adb remount” to remount the system partition and use “adb push” to put the file into your etc folder and try again.

  Please note all the consequences for your device warranty when rooting your system though.

  Hope that gets you started

  All the best
  Manuel
  Reply
  1. Nikola says:

    February 3, 2013 at 03:56

    I will try this method, and let you know what have I managed to do.
    Thanks

    Reply
Pingback: arduino android usb connection : Android Community - For Application Development
ch says:

February 5, 2013 at 15:19

Great work. I am looking forward to get this work on my andriod tablet. Will let you know the results

Reply
Patrick says:

February 14, 2013 at 16:46

Hi

I am student and currently working on a project for my univerity. I am trying to write an app which is capable of reading date by using the TUSB3410(http://www.ti.com/product/tusb3410) and its USB to connect it with the C2500(http://www.ti.com/product/cc2500) connected via UART. Something like USB to serial.

I can get informations of the TUSB3140 like its vendor id or its endpoint so I can use the normal USB API. But it is rather tricky to receive the information of the cc2500. I dont know which methods I should use or which parameter are correct. So maybe you have an idea how the methods like controlTransfer() etc. should look like.

I hope you can help me with this problem!

Best regards, Patrick

Reply
1. Manuel Di Cerbo says:

  March 4, 2013 at 14:09

  Hello Patrick,

  Indeed if you have another USB-Serial controller the setup is always a bit tricky.
  I urge you to try and use wireshark while you connect the controller to your Host Machine and then check what control transfers are issued! This is a method guaranteed to work. If you are lucky please get back to us so we can refer to your work.

  All the best
  Manuel

  Reply
2. JD says:

  September 24, 2013 at 20:39

  Hi Patrick,

  I am in a similar environment – needing to get the Android Serial USB OTG interface working with a TI Launchpad which uses the TUSB3140 module for UART USB like your setup does. I got things to work very well with the Arduino Uno – so I know the Android side can work – and I can see the Vendor ID and Device ID for the TI module when I iterate devices (Decimal 1105 for the vendor and decimal 62514 for the device), but things keep crashing and no data is ever exchanged as far as I can see.

  Did you ever find a solution to the setup for the TUSB3140 in your project? Thanks.

  Reply
Suhas says:

February 18, 2013 at 20:52

Hi very nice! Loved it!

I have a small doubt. This code continously sends data from the android phone to the arduino. Is there anyway i can send discreet data .
For example, I want to send data((byte)0x03) to the arduino only on a button press.

When i put the following code on a button press
sUsbController.send((byte)(0x03));
The arduino crashes after sometime. I think its because the buffer is overflowing as the android code is continously sending the data(0x03) to the arduino. Any way i can make the android code send the data only once?

Reply
1. Manuel Di Cerbo says:

  March 4, 2013 at 14:07

  Hello Suhas,

  You should always check the return result of “bulkTransfer” since it indicates the amount of bytes actually sent to the Arduino. Also be sure to always call Serial.read() / handle the interrupt properly, on the Arduino side.

  All the best
  Manuel

  Reply
Pingback: EECS Sr Design '13 » Blog Archive » Eh Team – Progress Report II for Prototype I: Wheelchair API
Joseph says:

February 26, 2013 at 07:38

Is there example code that I could add for sending information back to the android device? Perhaps if I were to take a few analog reads from the arduino and I want to send them to be graphed on the android?

Reply
1. Manuel Di Cerbo says:

  March 4, 2013 at 14:03

  Hello Joseph,

  We don’t have a read example, that is right, yet it is really simple. You only need a reference to the Bulk OUT endpoint and then send the data via bulkTransfer(…). The buffer you submitted as argument will then hold the data from the Arduino.

  hope that helps you
  all the best
  Manuel

  Reply
Andreas Stickler says:

February 28, 2013 at 16:02

Hi! We are using your program for our project at school and we would like to ask you for some help. It would be very appreciated! We’re not that good at programming so yeah..

First of all we’d like to know how to send data from the arduino back (in our case, to an android nexus 7 tablet).

Secondly we need to know if your program is also executable on the arduino micro board (http://arduino.cc/en/Main/ArduinoBoardMicro). Currently we are using the same as you use(d) (Arduino Uno)

Thanks for your help in advance! Greetings from Austria!

Reply
1. Manuel Di Cerbo says:

  March 4, 2013 at 14:00

  Hi Andreas!

  Thank you so much.
  You can send data back by issuing a transfer to the bulk out endpoint and then you will receive the data that you are sending with Serial.write() on the Android side.
  The only thing you have to change is to find and Reference the Bulk OUT EP in the Java side. The data is then stored in the buffer you transmit.

  Hope that gets you started

  All the best
  Manuel

  Reply
  1. Andreas Stickler says:

    March 8, 2013 at 11:14

    Thank you very much! It worked flawlessly!
    Do you know if your program also works on the Arduino Micro? (http://arduino.cc/en/Main/ArduinoBoardMicro) We need to make the whole thing as tiny as possible…
    Thanks again!

    Reply
  2. Andy says:

    October 29, 2013 at 19:05

    Hi Manuel,

    I am also interested in receiving data back from the Arduino. I’m trying to follow your above advice, but I’m not sure how to proceed. Isn’t the bulk OUT EP used when you are sending data from the Android to the Arduino (in UsbController.java under synchronized (sSendLock), the line conn.bulkTransfer(epOUT, new byte[] { mData }, 1, 0); )?

    Do I need to write another line withing the synchronized (sSendLock) that just uses epIN instead of epOUT and a variable to store data instead of new byte[] { mData } ? Or do I need to make a new object, say sReceiveLock, and write a similar synchronized (sReceiveLock) ?

    Thanks,
    Andy

    Reply
  3. William Hutchison says:

    June 25, 2014 at 06:21

    Manuel,
    Thanks so much for this article. I got the Android-Arduino transfer to work with this when other approaches weren’t working. I did discover something: using the main() method instead of loop() disables the PWM outputs using analogWrite, for some strange reason. I worked around it by converting main to a loop that exits after 1 loop.

    But I, like about 10 others in this thread, really need to send data in the other direction also. I’m impressed that Andreas was able to use your hints to solve that, because nobody else has. I beg you to help us by elaborating a bit more how to do this transfer. Please? Or anyone else that has solved this–including Andreas.
    Thanks, Bill

    Reply
Surya says:

March 15, 2013 at 19:59

i get this error in the arduino program.

“sketch_mar15a:96: error: ‘PB5’ was not declared in this scope”

what could be the reason ? pls help

Reply
HG says:

March 23, 2013 at 12:10

Hi there,
Amazing tutorials!
I got it work with my Nexus 7 and Arduino Mega 2560.
A few things to change for it to work on the Mega 2560 though:
– The LED pin is PB7.
– The USART_RX interrupt vector for Mega2560 is USART0_RX_vect
( I referred to http://www.nongnu.org/avr-libc/user-manual/group__avr__interrupts.html#gad28590624d422cdf30d626e0a506255f)
– The PID of Mega2560 is 0x0042 (just do a lusb to see the correct PID)
– In the code to blink the LED, setting _delay_us(pause*10) is too fast, the LED would just dim. change delay_us to delay_ms would work.

Reply
1. Manuel Di Cerbo says:

  March 26, 2013 at 11:32

  Hello HG!

  Awesome! Thank you for sharing with the rest

  All the best
  Manuel

  Reply
HongjoonKim says:

March 29, 2013 at 07:11

Hello, Manuel.

Thank you for your great work.

I am trying to make your solution for Mega ADK, but it is not easy…

I uploaded your firmware code on mega adk, and also installed android application on Nexus S and galaxy nexus.

What I modified is PID(Mega adk’s was 0044) in anroid application, and I change LED value to 13(I am using vibrator) in firmware code.

But Mega ADK did not respond. It was still in power off status even I connected to Nexus.

Do I have to change more? Could you help me what do I have to change?

Thank you in advance.

Reply
1. Manuel Di Cerbo says:

  April 2, 2013 at 15:13

  Hello HongjoonKim,

  The guide is not for the ADK / Accessory API but rather for the USB Host API. Still you can hook up your Mega ADK yet you will need to use an OTG converter. Sadly the Nexus S does not support USB OTG. The Galaxy Nexus on the other hand should do fine.

  All the best
  Manuel

  Reply
Roman KubÅ¯ says:

April 3, 2013 at 16:11

Hello,
i just bought Arduino UNO rev 3 and i would like to connect it with Google Nexus 7 to swich on – off LED 13(L) can i do it? Or do yo have any code that helps me to achieve it?

Thanks very much for respond

Reply
1. Manuel Di Cerbo says:

  April 3, 2013 at 16:13

  You can do it with a slightly modified version of the software code on the Android side.
  Nexus 7 works

  All the best
  Manuel

  Reply
  1. Roman KubÅ¯ says:

    April 3, 2013 at 16:31

    Can i ask you for code for Arduino side in format of ino? I am programming on Windows 7 with Arduino 1.0.4 so I am little clueless how to modifie Arduino program from C++ to work.

    Reply
Roman KubÅ¯ says:

April 4, 2013 at 01:41

I have Arduino UNO rev 3 and Google Nexus 7

I tried to modify code for Arduino – http://pastebin.com/k9Z1cJjP
Also i modified MainActivity to – http://pastebin.com/7qt3MbuT

When i left PID on 0x0001 nothing will happend. When i changed it to 0x0043 then activity will failed on nullpointer exception caused by conn
if (!conn.claimInterface(mDevice.getInterface(1), true)) {
return;
}

Can you help me to get it working Please?

Reply
chethan says:

April 10, 2013 at 15:22

Hi Manuel,

I have google nexus s and TI’s MSP430 launch pad
I want to send data processed in launch pad to nexus s for display. I read most of the comments I couldn’t able get a complete info on how to proceed with this. In one of the post you told that USB OTG doesnt works with nexus s, so is there any way to make it work? I am very new to android environment. Pls help me, this is my mini project to be submitted to the college.
Thanks in advance

Reply
Awais Niazi says:

April 20, 2013 at 08:11

Hi, I want to make android version of my PC (C#) code which connects to a OBD-II scanner circuit through USB to RS232 cable. when I connect the device to my android tablet its shows up as /dev/ttyUSB0. I can send and recieve data through “slick USB 2 serial” terminal app successfully. Having almost no knowledge of android development I would like to seek help from you. if u could help, it would be highly appreciated. I only need a kick start for which I need a simple app which has a button and a text box. when button is pressed a string “abcd” is sent and the received data should be displayed in the text box. I searched a lot but couldn’t get any easier guide. I’m not even sure what content I need to read. Looking at what you have done I believe you could help me….
Regards

Reply
Jonathan Ko says:

May 31, 2013 at 11:22

Thank you for your work on this. I did finally get it to work. I have the exact setup you describe here. Galaxy Nexus + arduino Uno. Oddly, I had to change the baud rate on the arduino side to 4800 to get it to work. Do you have any idea why this this is? I would investigate the control parameters, but I’m a bit out of my element here.

Thanks again.

Reply
1. Jonathan Ko says:

  June 9, 2013 at 22:29

  I think perhaps this may be related to the USE_2X flag detailed here.

  http://www.appelsiini.net/2011/simple-usart-with-avr-libc

  Reply
anhtuan says:

June 7, 2013 at 04:08

i have a problem that my arduino uno can’t recive data from the tablet(i use haipad a13) and i can’t find the problem. can you give me a tip to solve this problem
i use android 4.1

Reply
cai says:

June 13, 2013 at 11:29

hello,i want to achieve two smartphones communication .but i don’t know how can i do ? can you give me some advice ? i can do connection another device but send message not receive

Reply
1. cai says:

  June 19, 2013 at 11:55

  Now whether a device can achieve this function ? What do I need to write their own drivers ?

  Reply
Jonathan Ko says:

June 18, 2013 at 10:50

Thank you again for the very informative article. I just wanted to confirm that this does work for Galaxy Nexus + Arduino Nano with FTDI chip. The only changes required were changes to VID/PID, and also changes to mDevice.getInterface(1) to mDevice.getInterface(0) as there seems to be only one interface exposed.

Reply
1. Jonathan Ko says:

  June 18, 2013 at 10:52

  Forgot to mention change to the controlTransfer commands for FTDI as well.

  Reply
sckalman says:

June 28, 2013 at 04:13

I found out that this USB HOST API just can not find the HID device ,but the other device is normal, how can I use this api find the HID device? I test many device , you say that

Manuel Di Cerbo Post authorJune 4, 2012 at 15:20Hey Arvind,
About the HID: I actually never tried to connect. However, since the interfaces of the HID device is probably already claimed by the input driver, it would be difficult to use them in the app.

Does now it have any way to slove it ?

Reply
Yuan says:

July 1, 2013 at 16:09

Hi!
You presented an awesome demo about Android USB Host Programming. But I want to know how to deal with the interrupt IN EP ( a typical hid device ) which required to poll periodically. Could you give me some approach or code snippet about this?

Reply
NKP says:

July 1, 2013 at 20:40

Hello Manuel,

I am working with Raspberry Pi. Based on your code I am able to list the devices. My device is a DIGI XStick which is receiving temperature readings from a wireless sensor. This Xstick is attached to RPi. I want to read the readings of temperature on the XSTICK. I know I need to use these

conn.controlTransfer(0x21, 34, 0, 0, null, 0, 0);
conn.controlTransfer(0x21, 32, 0, 0, new byte[] { (byte) 0x80,
0x25, 0x00, 0x00, 0x00, 0x00, 0x08 }, 7, 0);

But I don’t know how to use it from adb. After starting the activity and giving logcat | grep “>==<" devices are listed. Then if i type the above two lines nothing happens. If i do CTRL+C and come out to adb shell and then type these statements it will give syntax error. Please can you explain how to read the temperature readings on XStick using adb?

Many thanks for this article.

NKP

Reply
Hubao Zhang says:

July 18, 2013 at 23:27

Is there a way to debug the code? Since there is a only one micro USB port in Android phone, is there a way to debug the code using emulator while the USB device is hooked to a PC USB port?

Reply
1. can says:

  July 29, 2013 at 05:07

  Using adb wireless connect ?

  Enable it in phone by:
  stop adbd
  setprop service.adb.tcp.port 5555
  start adbd

  Connect it via adb in pc
  adb kill-server
  adb connect xxx.xxx.xxx.xxx

  Reply
can says:

July 27, 2013 at 09:57

I use it in my new MK802. When I plugin the UNO R3 to MK802 via micro usb otg, the UNO does not perform normal.

I get the following via adb logcat:

usb 3g monitor v0.1 start
event { ‘add’, ‘/devices/platform/sw_hcd_host0/usb1’, ‘usb’, ”, 189, 0 }
event { ‘add’, ‘/devices/platform/sw_hcd_host0/usb1/1-1’, ‘usb’, ”, 189, 2 }
path : ‘/sys/devices/platform/sw_hcd_host0/usb1/1-1’
VID :size 5,vid_path ‘/sys/devices/platform/sw_hcd_host0/usb1/1-1/idVendor’,VID ‘2341 ‘.
PID :size 5,Pid_path ‘/sys/devices/platform/sw_hcd_host0/usb1/1-1/idProduct’,PID ‘0043’.
cmd=/system/etc/usb_modeswitch.sh /system/etc/usb_modeswitch.d/2341_0043 &,
excute ret : 0,err:No such file or directory
event { ‘add’, ‘/devices/platform/sw-ehci.1/usb2’, ‘usb’, ”, 189, 128 }
event { ‘add’, ‘/devices/platform/sw-ohci.1/usb3’, ‘usb’, ”, 189, 256 }
event { ‘add’, ‘/devices/platform/sw_hcd_host0/usb1/1-1’, ‘usb’, ”, 189, 3 }
path : ‘/sys/devices/platform/sw_hcd_host0/usb1/1-1’

The error continues display. It enters a loop to get some USB host profile. I perform ps through ssh, found a process:

/system/bin/busybox ash /system/etc/usb_modeswitch.sh /system/etc/usb_modeswitch.d/2341_0043

As expected, I cannot locate the file 2341_0043 in usb_modswitch.d directory.

It seems I cannot continue without such required file. Where can I download such USB host profile? Or any other way to skip or create it?

Reply
1. can says:

  July 29, 2013 at 05:09

  I solved it by putting the required permission files in /system/etc/permission/

  Reply
Steve says:

July 28, 2013 at 12:54

Great document. It works!!! Thanks for the author.

I would like to ask a question here. Is there any way to skip the permission granting dialog? It shows such dialog after reboot the device.

My device is rooted. Hope this help. Looking forward to getting the solution. Thanks.

Reply
Steve Bramley says:

August 1, 2013 at 10:22

Hi,
This article is a godsend! I was able to get this running on a pro mini knock off by deek-robot. works a treat but it means i have to use a ftdi breakout that’s bigger than the pro mini! I was hoping to try this with a pro micro from sparkfun but it doesn’t seem to support the serial variables. when i compile through Arduino ide I get a litany of ‘xxxxxx’ was not declared in this scope. replace xxxxxx for UBRR0H through to UDR0

Is this because the libs aren’t in the firmware? is there any way i can update that?

Reply
mansi says:

September 3, 2013 at 08:38

Hi Manuel,

I am working with acer B1A71 tablet.
I have deployed most of my apps on it and working fine.
Now I want to make it as a USB host. I tried connecting my tab and the hardware with the help of an OTG cable ,but it didn’t work ( I Know its a stupid way of doing it)
How do I go about making it a USB host ?? Could you please help me out.. MIne is a rooted tablet and kernel version is 3.4.0. Not sure if it supports USB host API. I have no idea how to check if it supports that API.

Can you please help me out with this ?

Thanks in advance,
Mansi

Reply
Pingback: ÐÐ°Ñ…Ð¾Ð´ÐºÐ¸ Ð¾Ñ‚ 10.09.13 | MyLinks
Luis says:

September 13, 2013 at 08:40

I just wanted to mention that this works on a Mega ADK by utilizing 0x0044 for the PID. I have tried using Accessory mode FROM the ADK to the tablet with some results, but not all the way. This example you posted got me talking to the board. I used another app from Google Play to read the PID / VID.

Thanks for the post!

Reply
JD says:

September 24, 2013 at 17:23

Hi,

This article is GREAT work and it helped me tremendously in getting an Arduino Uno to communicate with an Android tablet over the USB Serial connection. But now I have been trying to make the same thing work for a TI Launchpad and everything seems to be breaking. Does anyone know what the controlTransfer code would be for the TUSB3410 controller that is used on the TI Launchpad as the USB interface? I have even tried the Android USB Serial Monitor Lite app – since it handles numerous devices – and it also cannot open the TI Launchpad properly. Thanks.

Reply
Aykut says:

September 26, 2013 at 16:35

Hi Manuel i connected and sent data from android tablet to arduino board. But i want to send data arduino to android too.How can i listen received datas in android? In imported packages i didnt see any receive function in java.What i should to do?

Reply
Eric Echeverri says:

October 6, 2013 at 05:06

Is it possible to use the usb port to stream the cam using OTG as seen in htis video

http://www.youtube.com/watch?v=M_HaIp5GLgE

Thanks
Eric

Reply
Paul says:

October 13, 2013 at 00:17

Hello. I have one I could help you schedule one arduino to send data to the application in android but not how to make android application displays data onscreen arduino sends me. use your code to connect to arduino but I have no idea how dispositib resivir in android. thanks for the help.

Reply
Fredrik says:

December 29, 2013 at 12:08

Hi,
Thanks for a great tutorial. I’m very new in this field and need a hint. Managed to almost get everything working… Except that the led (for me on pin 13, arduino uno rev3) not get lighted.

I can see that RX led flashes when i move the slider. But nothing happens on the led for pin 13. I changed PID to 0x0043.

And so a little Christmas wish. I think a lot of people out there would be extremely gratefully if you added a section on how to read values from the arduino and present them in the android app.

Big thanks in advance!

/Fredrik

Reply
Razmy says:

January 3, 2014 at 15:20

My Nexus S device can’t power up the arduino and the host mode is not enable on the device. any clue is valuable.

Reply
Jozef says:

January 6, 2014 at 01:27

Hi. Im try this connection with Nexus 5 and arduino mega 2560.
Im little modify code :
int main(void) { ... for(;;) { digitalWrite(13, HIGH); _delay_us(10000); digitalWrite(13, LOW); _delay_us(10000); pause = data;
for (i=0;i<pause;i++){ digitalWrite(10, HIGH); _delay_us(100); digitalWrite(10, LOW); _delay_us(100); }
PORTB |= (1 << LED);.... return 0; // never reached }
When I start it, diode is blinked. Also when I connect nexus via usb and push Enumerate.
But When I change slider, on board diode EX is blinked, but other dioded is stop blinked. like program crashed.

How I can debug it, or whot I do wrong ?
Thanks

Reply
1. Jozef says:

  January 6, 2014 at 01:30

  Ohh. here is maybe problem

  #define BAUD_ERROR ((BAUD_REAL*1000)/BAUD) // error in parts per mill, 1000 = no error
  too long response when I wait for diode.

  Reply
Jozef says:

January 6, 2014 at 02:59

Hi.
Im using nexus 5 and arduino mega 2560.
Device us connected, but transfer is not working. when I change slider, then diode on board RX is blinked. but nothing else.
Im try add blink test(turn diod on) to method uart_putc, uart_getc, ISR. but diode is not turn on.

Reply
Oscar Cabrera says:

January 13, 2014 at 20:34

Hello

the reason for my post is a question about your blog Android + Arduino USB Host: How to communicate without the roots of your Android tablet or phone

use your code to create communication but send data to arduino there is a delay and values â€‹â€‹are lost, I wanted to implement the arduino get the data and send back to help monitor android is lost or if the connection is failing

thank you very much for your attention

Reply
Miki Nacucchi says:

January 24, 2014 at 12:39

Work very fine also Arduino Mega rev3 with:
PID = 0x0042;//<-- Arduino Mega

I have used the android package for a demo in a talk during Linux Day 2013 @ Bari.
source: https://github.com/MikiNacucchi/DemoOpenHardware/

Reply
Eric says:

February 20, 2014 at 10:40

Thanks for your post.

I copy your conn.controlTransfer() setting to my exercise of Android USB Host Mode.

// Arduino USB serial converter setup
conn.controlTransfer(0x21, 34, 0, 0, null, 0, 0);
conn.controlTransfer(0x21, 32, 0, 0, new byte[] { (byte) 0x80,
0x25, 0x00, 0x00, 0x00, 0x00, 0x08 }, 7, 0);

Reply
Claudio says:

May 4, 2014 at 15:51

I used the usb controller and it worked with a arduino mega.
my question is how could read a sensor from Arduino and receive the value placed in a text field in android.
from already thank you

Reply
van says:

May 15, 2014 at 11:57

GREAT!
Thank you very much! I have only one problem figuring out the baud rate for midi (31250, asynchron) for the controlTransfer.
can you please help me with that?
thank you very much!

cheers, van

Reply
1. van says:

  May 15, 2014 at 13:26

  I’ve got it:
  conn.controlTransfer(0x21, 34, 0, 0, null, 0, 0); conn.controlTransfer(0x21, 32, 0, 0, new byte[] { (byte) 0x12, 0x7A, 0x00, 0x00, 0x00, 0x00, 0x08 }, 7, 0);

  Reply
  1. Manuel Di Cerbo says:

    May 18, 2014 at 17:46

    Thank you a lot van for the update!

    Reply
Bradley Fox says:

June 25, 2014 at 02:41

Great example! However do you have any code suggestion for reading from Auduino to Android. Thanks.

Reply
William Hutchison says:

June 25, 2014 at 06:27

Manuel,
Sorry for duplicating this comment. Replying to your note in March stuck my comment back there where nobody may notice it.

Thanks so much for this article. I got the Android to Arduino transfer to work with this when other approaches werenâ€™t working. I did discover something: using the main() method instead of loop() disables the PWM outputs using analogWrite, for some strange reason. I worked around it by converting main to a loop that exits after 1 loop.

But I, like about 10 others in this thread, really need to send data in the other direction also. Iâ€™m impressed that Andreas was able to use your hints to solve that, because nobody else has. I beg you to help us by elaborating a bit more how to do this transfer. Please? Or anyone else that has solved thisâ€“including Andreas. I know you like people to try on their own, but a bunch of people have tried and failed, including me–and I’m generally very good at this kind of problem. Thanks in advance.
Thanks, Bill

Reply
Akhilesh Sreedharan says:

July 16, 2014 at 04:07

Hello Friends!!
Even Iam using android and arduino duemilanove to communicate over an USB interface using android’s USB host APIs. But when I try opening the connection using the UsbManager.openDevice(UsbDevice device) method of the UsbManager class, I get a NullPointerException. Iam new to this field and cannot figure out where the possible problem could be ? Hope someone will help me out with this
Thanks in advance!!!

Reply
Zong Yin says:

August 22, 2014 at 02:12

hello there,
our controller uses a 38400 baud rate, 7 data bits, 1 stop bit, and odd parity. How to set up them in the sketch?

Thanks

Reply
Ardy_Gremlin64 says:

September 23, 2014 at 06:42

Hello,

Nice tutorial, I’m from indonesia. I’ve following the instructions. And I’m using Smatfren Tab7.0 from hisense. I need to hack the USB Permission to connect with arduino device. And It works. Thanks anyway.

Sorry for bad english

Reply
andrea bergamini says:

September 23, 2014 at 12:11

Great example! It’s a pity to have a wired connection when you use a mobile device. Is there a way to use a bluetooth connection since every mobile device today is provided of a bluetoorh stack?
From Arduino side maybe a bluetooth adapter could do the job.

Reply
TakiRahal says:

February 20, 2015 at 21:45

Hello
Im using the code :

Part Android :

package com.example.helloworld;

import java.io.FileDescriptor;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;

import android.app.Activity;
import android.app.PendingIntent;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.Bundle;
import android.os.ParcelFileDescriptor;
import android.util.Log;
import android.widget.TextView;
import android.hardware.usb.UsbManager;
import android.hardware.usb.UsbAccessory;

public class HelloWorldActivity extends Activity {

private static final String TAG = HelloWorldActivity.class.getSimpleName();

private PendingIntent mPermissionIntent;
private static final String ACTION_USB_PERMISSION = “com.android.example.USB_PERMISSION”;
private boolean mPermissionRequestPending;

private UsbManager mUsbManager;
private UsbAccessory mAccessory;
private ParcelFileDescriptor mFileDescriptor;
private FileInputStream mInputStream;
private FileOutputStream mOutputStream;

private static final byte COMMAND_TEXT = 0xF;
private static final byte TARGET_DEFAULT = 0xF;

private TextView textView;

/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);

mUsbManager = (UsbManager) getSystemService(Context.USB_SERVICE);
// mUsbManager = UsbManager.getInstance(this);
mPermissionIntent = PendingIntent.getBroadcast(this, 0, new Intent(
ACTION_USB_PERMISSION), 0);
IntentFilter filter = new IntentFilter(ACTION_USB_PERMISSION);
filter.addAction(UsbManager.ACTION_USB_ACCESSORY_DETACHED);
registerReceiver(mUsbReceiver, filter);

setContentView(R.layout.activity_hello_world);
textView = (TextView) findViewById(R.id.textView);
}

/**
* Called when the activity is resumed from its paused state and immediately
* after onCreate().
*/
@Override
public void onResume() {
super.onResume();

if (mInputStream != null && mOutputStream != null) {
return;
}

UsbAccessory[] accessories = mUsbManager.getAccessoryList();
UsbAccessory accessory = (accessories == null ? null : accessories[0]);
if (accessory != null) {
if (mUsbManager.hasPermission(accessory)) {
openAccessory(accessory);
} else {
synchronized (mUsbReceiver) {
if (!mPermissionRequestPending) {
mUsbManager.requestPermission(accessory,
mPermissionIntent);
mPermissionRequestPending = true;
}
}
}
} else {
Log.d(TAG, “mAccessory is null”);
}
}

/** Called when the activity is paused by the system. */
@Override
public void onPause() {
super.onPause();
closeAccessory();
}

/**
* Called when the activity is no longer needed prior to being removed from
* the activity stack.
*/
@Override
public void onDestroy() {
super.onDestroy();
unregisterReceiver(mUsbReceiver);
}

private final BroadcastReceiver mUsbReceiver = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
if (ACTION_USB_PERMISSION.equals(action)) {
synchronized (this) {
UsbAccessory accessory = (UsbAccessory) intent.getParcelableExtra(UsbManager.EXTRA_ACCESSORY);
if (intent.getBooleanExtra(
UsbManager.EXTRA_PERMISSION_GRANTED, false)) {
openAccessory(accessory);
} else {
Log.d(TAG, “permission denied for accessory ”
+ accessory);
}
mPermissionRequestPending = false;
}
} else if (UsbManager.ACTION_USB_ACCESSORY_DETACHED.equals(action)) {
UsbAccessory accessory = (UsbAccessory) intent.getParcelableExtra(UsbManager.EXTRA_ACCESSORY);
if (accessory != null && accessory.equals(mAccessory)) {
closeAccessory();
}
}
}
};

private void openAccessory(UsbAccessory accessory) {
mFileDescriptor = mUsbManager.openAccessory(accessory);
if (mFileDescriptor != null) {
mAccessory = accessory;
FileDescriptor fd = mFileDescriptor.getFileDescriptor();
mInputStream = new FileInputStream(fd);
mOutputStream = new FileOutputStream(fd);
Thread thread = new Thread(null, commRunnable, TAG);
thread.start();
Log.d(TAG, “accessory opened”);
} else {
Log.d(TAG, “accessory open fail”);
}
}

private void closeAccessory() {
try {
if (mFileDescriptor != null) {
mFileDescriptor.close();
}
} catch (IOException e) {
} finally {
mFileDescriptor = null;
mAccessory = null;
}
}

Runnable commRunnable = new Runnable() {

@Override
public void run() {
int ret = 0;
byte[] buffer = new byte[255];

while (ret >= 0) {
try {
ret = mInputStream.read(buffer);
} catch (IOException e) {
break;
}

switch (buffer[0]) {
case COMMAND_TEXT:

final StringBuilder textBuilder = new StringBuilder();
int textLength = buffer[2];
int textEndIndex = 3 + textLength;
for (int x = 3; x < textEndIndex; x++) {
textBuilder.append((char) buffer[x]);
}

runOnUiThread(new Runnable() {

@Override
public void run() {
textView.setText(textBuilder.toString());
}
});
sendText(COMMAND_TEXT, TARGET_DEFAULT,
"Hello World from Android!");
break;

default:
Log.d(TAG, "unknown msg: " + buffer[0]);

break;
}

}
}
};

public void sendText(byte command, byte target, String text) {
int textLength = text.length();
byte[] buffer = new byte[3 + textLength];
if (textLength <= 252) {
buffer[0] = command;
buffer[1] = target;
buffer[2] = (byte) textLength;
byte[] textInBytes = text.getBytes();
for (int x = 0; x < textLength; x++) {
buffer[3 + x] = textInBytes[x];
}
if (mOutputStream != null) {
try {
mOutputStream.write(buffer);
} catch (IOException e) {
Log.e(TAG, "write failed", e);
}
}
}
}
}

Part Arduino :

#include
#include
#include

#define ARRAY_SIZE 12

AndroidAccessory acc(“Manufacturer”, “Model”, “Description”,
“Version”, “URI”, “Serial”);

char hello[ARRAY_SIZE] = {‘H’, ‘e’, ‘l’, ‘l’, ‘o’, ‘ ‘,
‘W’, ‘o’, ‘r’, ‘l’, ‘d’};

void setup() {
Serial.begin(115200);
acc.powerOn();
}

void loop() {
if (acc.isConnected()) {
for (int x=0; x<ARRAY_SIZE; x++) {
Serial.print(hello[x]);
delay(250);
}
Serial.println();
delay(250);
}
}

but in monitor serial I have an error (Error: OSCOKIRQ failed to assert)
You can help me please

Reply
mahesh says:

March 23, 2015 at 01:13

hi,

my Android test app (90% derived from yours) controls an Arduino Uno R3 via USB OTG (send only needed); i’m making a robot heater that focuses a beam of infrared heat on a person, even when he/she moves, using servos (myhaser.com). Tablets (unrooted, JellyBean & KitKat) work fine, UsbManager lists the device, no problem. BUT my phone (KitKat 4.4.2, now rooted) does not. it powers the Arduino, even lists it at the Linux level. i see a new file /dev/ttyACM0. also, the folder, /sys/bus/usb/devices/ gets new subfolders: “1-1”, “1-1:1.0” and “1-1:1.1”, which have files and folders within them. for example, the file /sys/bus/usb/devices/1-1/manufacturer has the text “Arduino (www.arduino.cc)”. file /sys/bus/usb/devices/1-1/bDeviceClass has the text “02”. file /sys/bus/usb/devices/1-1/idVendor has the text “2341”. file /sys/bus/usb/devices/1-1/idProduct:is “0043”.
â€‹â€‹
my test app didn’t work on ANY phone (all tested ones powered up the Arduino). the app works on ALL tablets tried: on them, it connects as a serial device (57600, 8 N 1). I’ve also controlled it from the tablets using the ZTerminal app; in it, i have to choose “Prolific” (not FTDI) as the type of device.

what should i do? what changes should i make (the phone is already rooted)? i’d prefer a solution without rooting or writing a a second type of code for phones. but i’ll take anything i can get :-).

here are the details:

phone: Micromax A120 Colours 2 (indian brand) running KitKat 4.4.2. it’s based on the MT6582 or MT6589 hardware, i believe.

The phone reports the following info about the connected Arduino:
Device Path: /sys/bus/usb/devices/1-1/
Device Class: Communication Device (0x2)
Vendor ID: 2341
Vendor Name (reported): Arduino (www.arduino.cc)
Vendor Name (from DB): Arduino SAâ€‹ (this is a database that the USB reporting software dowlnloads from the internet)â€‹
Product ID: 0043
Product Name (reported):

Product Name (from DB): Uno R3 (CDC ACM)

Additional Info
USB Version: 1.10
Speed: 12
Protocol: 00
Maximum Power: 100mA
Serial Number: 7493730393635180E122

These three apps are able to provide this info: USB Device Listâ€‹, USB Device Infoâ€‹ and USB Host Controllerâ€‹. the last one also reports:â€‹â€‹

Usb Host Controller
Version number 0.44
S3C USB Host driver NOT found!

Root hub present, USB Host mode is active!

thanks for your help!

mahesh

Reply
Shaun O'Reilly says:

December 3, 2015 at 10:11

Got something similar working from Galaxy Note 4 (Not rooted)

Development done on Mac Book pro.

Arduino device used: USBDroid connecting with OTG cable and larger USB port on Arduino board.

private static final int VID = 0x26BA; // USBDroid
private static final int PID = 0x0003; // USBDroid

Can’t remember which version of the IDE was used to compile the Arduino code, and it does not compile any more, as I am now getting errors all over the place because of trying to get USB Host files and stuff included in libraries….

But the original code downloaded to USBDroid works, and causes the LED to flash, when I move the scroll thingy on the Android app

Reply
Pascal says:

December 21, 2015 at 00:06

Good evening, this is a nice tutorial.

But I have a question, I was now in all forums and no one could help me.

I need a program that simply reads the USB port. At Port data arrive as “22 00 22 33”.

And the incoming data to be evaluated.

So if, for example “22 00 22 33” then comes to my tablet the volume be increased.

I’ve already tried everything possible but I simply lack the experience away in terms android and the USB library and programming capability.

If anyone could help me and fancy hat can feel free to contact me

Email: pascal164@gmx.de

Similarly, if one makes me he would get a compensation for the effort, if desired

greetings from Germany

Pascal

Reply
feng says:

May 16, 2016 at 09:17

hey,i have a problem about the device which receives the data from android.i want to use android communicates with Linux through the usb-serial port，how can i deal with data send to Linux？thanks

Reply
