Actrk 400/600 Watt
Two versions of a robust module capable of delivering high powwer for extended periods. The Actrk400 uses 6 n-channel Mosfets in the output stage to deliver around 400 watts into 4 ohms while the Actrk600 uses 12 n-channel Mosfets in the output stage to deliver power in excess of 600 watts into 4 ohms. One constructor has achieved almost 900 watts with the Actrk600 layout using 12 IRFP460 Mosfets.

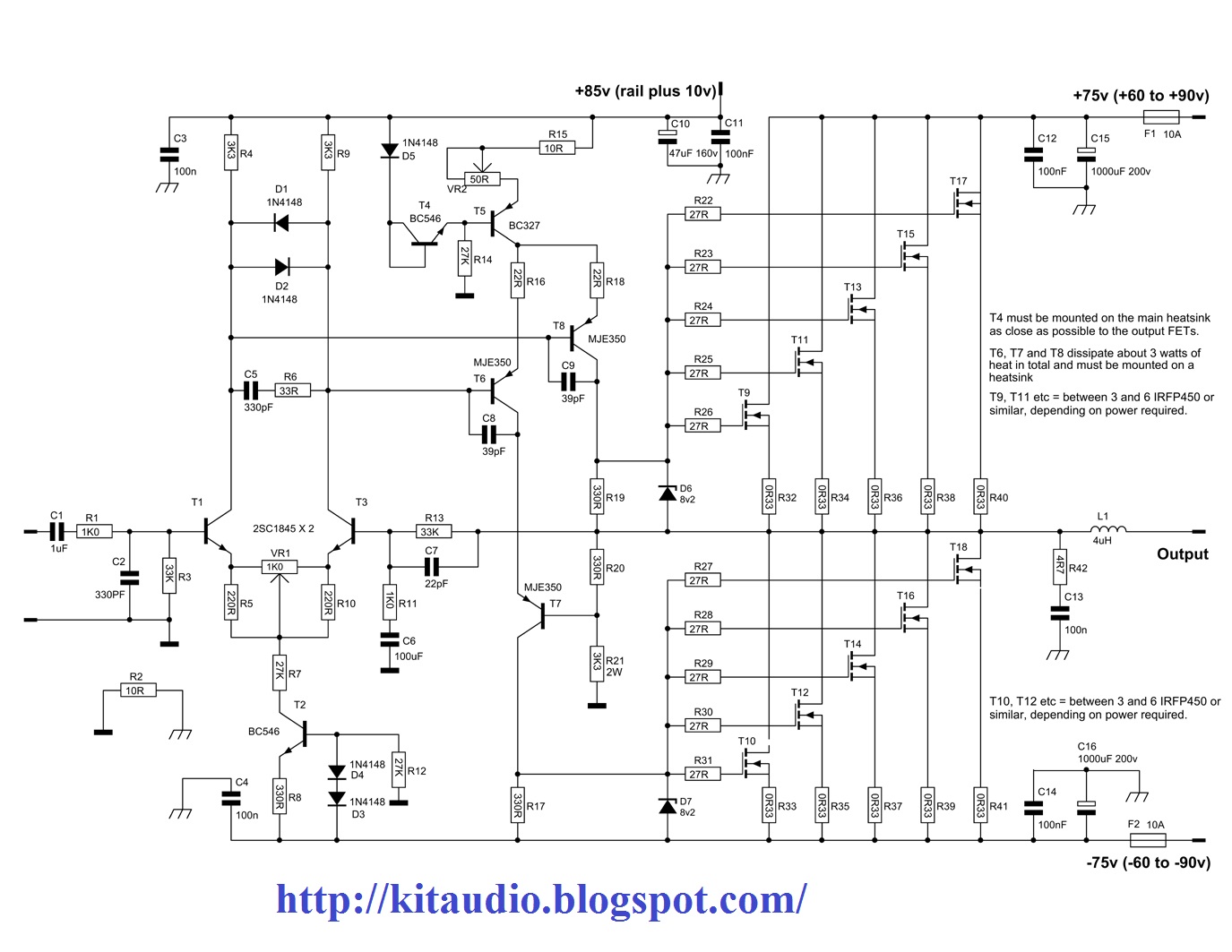

Actrk 600W schematic
